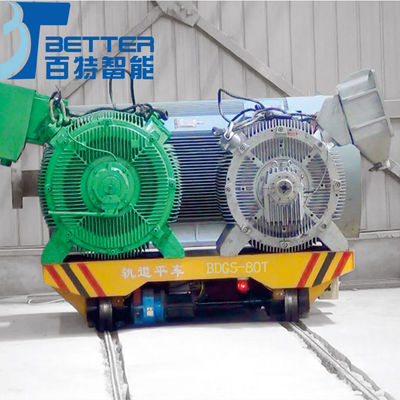

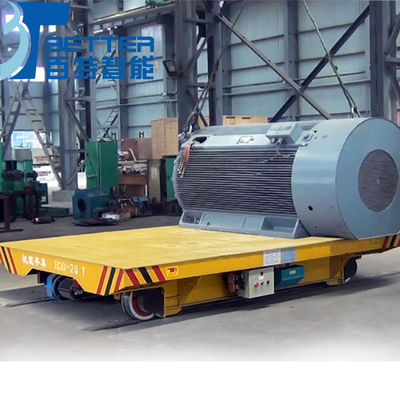

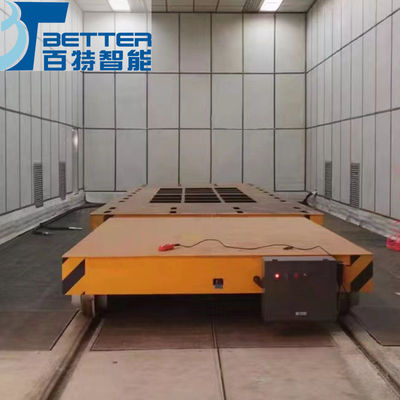

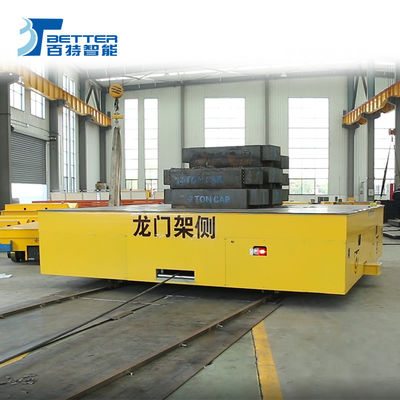

60Ton Motorized Rail Transfer Cart with Anti-Explosion and Heat-Resistant Features for Injection Mold Plants
Product Details
| Load Capacity | 1-300ton | Table Size | 2000*2000*500 |
|---|---|---|---|
| Wheel Base | 1200-7000mm | Wheel Diameter | 270-600mm |
| Running Speed | 0-25m/min | Motor Power | 0.8-15kw |
Product Description
60Ton Motorized Rail Transfer Cart for Injection Mold Plant
China supplies 60-ton motorized rail transfer carts specifically engineered for the demanding logistics of injection mold plants. These heavy-duty electric carts are designed to transport massive and high-precision injection molds between storage areas, maintenance stations, and the molding presses.
Operating on fixed rails ensures the stable and precise movement required to protect these valuable and sensitive tools from damage. This specialized equipment is fundamental to streamlining plant operations, as it enables efficient mold changes, minimizes press downtime, and supports a smooth, continuous production flow. Its robust construction and reliable performance make it a critical asset for large-scale plastic manufacturing facilities.
Detailed Photos
Product Parameters
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size (mm) Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Customization Information
How can Transfer Carts be customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
Our Advantages
- Low noise - Causes low noise level during operation
- Maximum safety - Offers guarantee of maximum safety for operators and materials handled
- Easy for operation - These vehicles are easy to drive and operate
- Easy to implement into manufacturing process - Operates on standard floors without complex installation
- Suitable for All Kinds of Weight - Superb for handling both small and extremely huge loads up to 300 tons
Packaging & Shipping
For equipment with length less than 6m and width less than 2.2m, transportation is via 20ft container. If length is between 5.9m and 12m, 40ft container is used. Multiple sets (2-3) can be transported by full container, while single sets use LCL Container.
For equipment with length less than 12m but width beyond 2.2m, flat rack containers (20 or 40 ft) are required. Equipment beyond these dimensions requires bulk cargo shipping arrangements.
