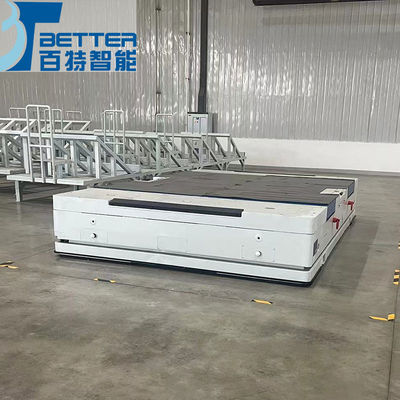

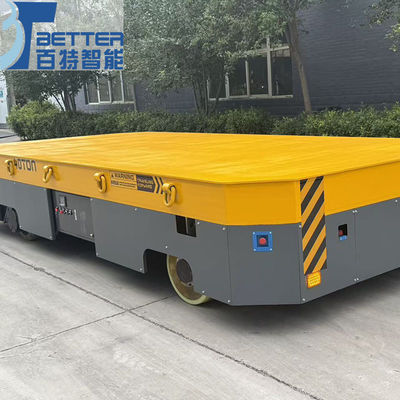

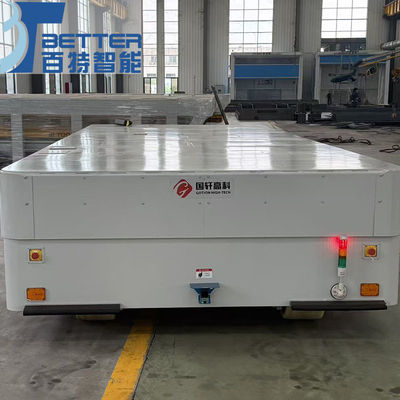

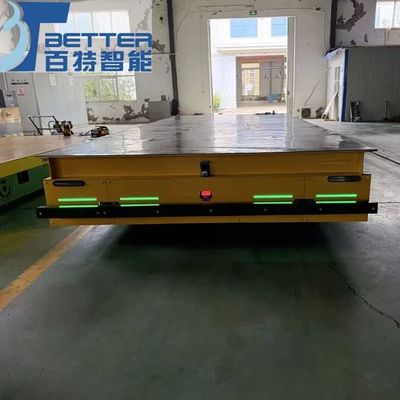

65-ton Load Capacity Anti-Explosion Heat-Resistant Battery-Powered Trackless Transfer Cart for Material Handling
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Steel Plate Thickness | 8-16 |
| Running Speed | 0-20 M/min | Motor Power | 3-15 KW |
| Wheel Diameter | 220-580 Mm | Ground Clearance | 50 Mm |
Product Description
Factory Supply 65t Material Handling Trackless Transfer Cart
Product Overview
The trackless transfer vehicle offers two steering systems: hydraulic steering and steering wheel steering, functioning as a versatile longitudinal and transverse mobile transport solution. Comprising five major components—vehicle body, drive system (battery, motor, and reducer), electrical system, steering wheel system, and safety detection system—this cart delivers exceptional operational convenience with low noise and flexible maneuverability.
Equipped with automatic stopping capability when encountering obstacles or personnel, this electric cart enhances workplace efficiency while eliminating potential safety hazards. Its trackless design enables free movement throughout workshops and warehouses, powered by high-capacity batteries that combine a 65-ton load capacity with robust mobility through advanced drive and smart steering systems.
Key Features
- Multiple steering options: hydraulic and steering wheel systems
- Automatic obstacle detection and stopping capability
- Low noise operation with flexible maneuverability
- High-capacity battery power with 65-ton load capacity
- Multi-level safety features and user-friendly controls
- Modular platform supporting customization options
- Optimized for internal logistics in modern factory environments
Technical Specifications
| Model | BWP-5t | BWP-10 | BWP-15 | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
|---|---|---|---|---|---|---|---|
| Rated Load (t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted Rated Load (t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Cart Weight (t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Max. Wheel Load (t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Table Size (mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| Motor Power (KW) | 3 | 4.4 | 6 | 7 | 10 | 12 | 15 |
Additional Specifications
- Frame Structure: Steel plates welded, beam structure
- Ground Requirement: Cement floor or steel plate ground
- Ground Clearance: 50mm
- Running Speed: 0-20 m/min
- Brake Principle: Electric magnetic brake
- Ground Balance: Mechanical automatic adjustment
- Operation Method: With wire or no wire
- Battery Maintenance: Free of maintenance
- Cart Color: Yellow with warning signs
- Radar Control: 3-0.3m, automatic stop for obstacles
- Warning Equipment: Sound and light
- Additional Functions: Turning light, night light, and power display
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partial product transfers
- Sub-assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support for navigating loads within plant facilities
- Material shuttle for steel tubing
- Elevating platform for assembly processes
- Sand casting operations
How Can Transfer Carts Be Customized?
Please provide the following information for customization:
- Type of load or product to be transferred
- Weight of the heaviest lift or load
- Dimensions (Length × Width × Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area requirements (rail/cement floor, indoor/outdoor, straight line travel)
- Travel distance
- Other relevant information or usage conditions
- Low Noise Operation: Minimal noise level for improved working environment
- Maximum Safety: Comprehensive safety guarantees for operators and materials
- Easy Operation: User-friendly driving experience with immediate usability
- Easy Implementation: Operates on standard floors without complex installations
- Versatile Weight Handling: Suitable for both small and extremely large loads with modular fabrication
Standard Container Shipping: For equipment with length less than 6m and width less than 2.2m, transported via 20ft container. For lengths between 5.9m and 12m, shipped via 40ft container.
Multiple Units: 2-3 sets transported by full container. Single units shipped via LCL container.
Oversized Equipment: For widths beyond 2.2m with lengths under 12m, transported via flat rack containers (20ft or 40ft). Equipment exceeding these dimensions requires bulk cargo shipping arrangements.
Our products meet industry standards and certification requirements. Please contact us for specific certification details relevant to your application.
