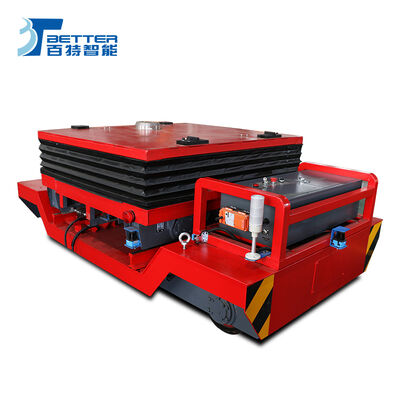

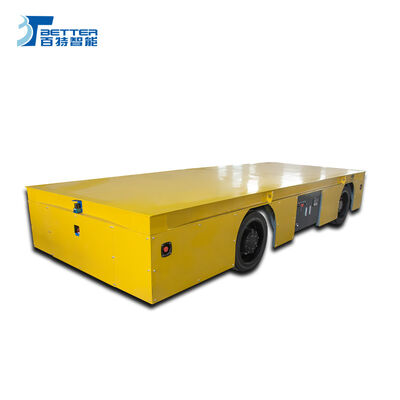

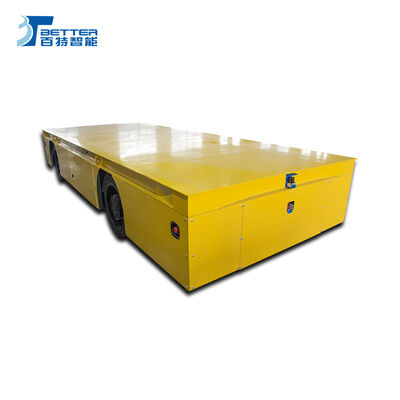

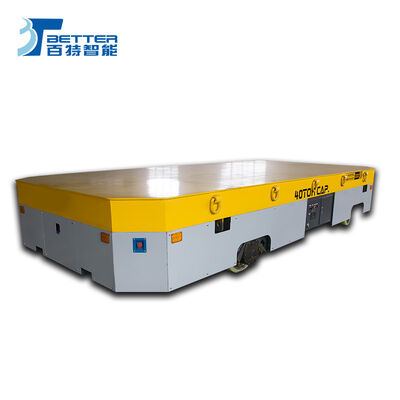

Anti-Explosion Battery-Powered Trackless Transfer Cart for High Frequency and Curved Tracks
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000*2000*500 |
| Wheel Base | 1200-7000mm | Wheel Diameter | 270-600mm |
| Running Speed | 0-25m/min |
Product Description
Trackless Transfer Cart For High Frequency And Curved Tracks Anti Explosion
Product Overview
Our trackless transfer cart redefines efficiency and adaptability in complex industrial environments. Engineered to handle high-frequency operations and navigate curved or irregular routes with ease, it eliminates the limitations of traditional rail-bound systems.
The flexible steering mechanism and robust control system ensure smooth and precise movement even in congested or dynamically changing layouts. Enhanced with multi-layer safety features—including 360° obstacle detection, automatic speed regulation, and emergency braking—the cart guarantees reliable and secure transport of heavy or sensitive loads.
Ideal for assembly lines, processing zones, and warehouses with frequent layout adjustments, this solution boosts productivity, minimizes downtime, and supports seamless logistics in demanding settings.
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size - Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size - Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size - Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hours) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
How can Transfer Carts be customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
Low Noise Operation
Produces minimal noise levels for improved working environment.
Maximum Safety
Comprehensive safety features ensure protection for operators and materials handled.
Easy Operation
User-friendly design with intuitive controls for immediate productivity.
Easy Integration
Operates on standard floors without complex or permanent installation requirements.
Versatile Capacity
Suitable for handling both small and extremely large loads with payloads up to 300 tons per trolley.
Standard Container Shipping: For equipment with length less than 6m and width less than 2.2m, transported by 20ft container. For length between 5.9m and 12m, transported by 40ft container.
Multiple Units: 2-3 sets can be transported by full container. Single sets can be transported by LCL Container.
Oversized Equipment: For width beyond 2.2m with length less than 12m, transported by flat rack (20 or 40 ft). Equipment beyond these dimensions requires bulk cargo shipping.
Our products meet industry standards and certification requirements. Please contact us for specific certification details.
