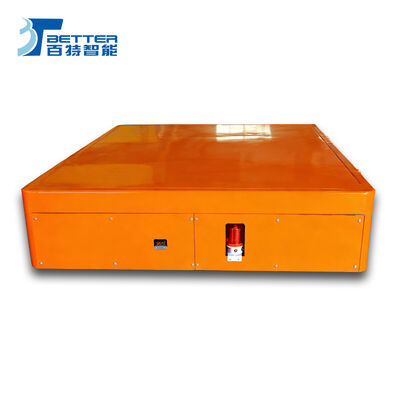

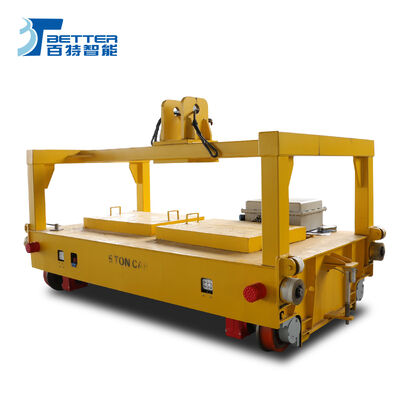

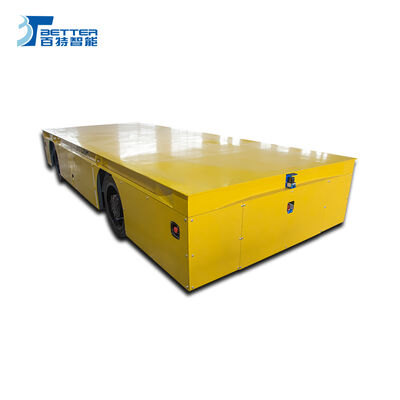

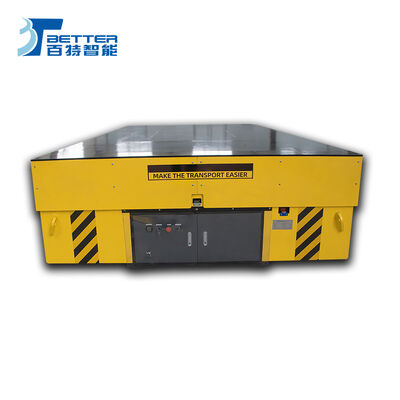

Battery Powered Trackless Transfer Cart with 1-300ton Load Capacity Anti-Explosion and Heat-Resistant Features
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000-10000mm (L), 1500-3000mm (W), 450-1200mm (H) |
| Wheel Diameter | 270-600mm | Battery Voltage | 48-72V |
Product Description
Battery Powered Lift Table Lifting Platform Trackless Transfer Cart
The Battery Powered Lift Table Lifting Platform Trackless Transfer Cart is an integrated material handling solution that combines flexible mobility with vertical positioning capability. Its electric lift mechanism enables precise height adjustment for loading, unloading, or positioning heavy items—eliminating the need for additional lifting equipment.
Powered by a rechargeable battery system, it ensures cordless, emission-free operation across workshops, warehouses, and assembly lines. The trackless design provides full directional freedom to navigate around obstacles and through narrow passages without fixed infrastructure.
With a robust steel frame, intelligent load-sensing, and safety features such as mechanical locks and emergency stop functions, this cart streamlines workflows, improves ergonomics, and boosts efficiency in dynamic industrial settings.
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hrs) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Applications
Precise Material Handling & Workstation Connection
Combining trackless movement and electric lifting functions, materials can be precisely lifted to operation tables, production lines or shelves at different heights, achieving flexible "good-to-person" distribution and significantly reducing the intensity of manual operations.
Assembly & Warehousing Process Optimization
In the assembly workshop, it can be used as a mobile lifting workbench. In the warehouse, it can be directly connected to the shelves for picking or inbound and outbound operations, effectively replacing the complex process of the traditional "forklift + fixed workbench".
Safe Handling of Precision Materials
The smooth lifting function eliminates the risks of bumps and drops that may be caused by manual handling, making it particularly suitable for the transportation of vulnerable parts, precision instruments or materials with high surface finish requirements.
Flexible Deployment for Diverse Scenarios
Battery power supply offers omnidirectional movement freedom without relying on fixed power sources or lifting tunnels. It can be quickly switched to different workstations to perform tasks according to production rhythms or order requirements.
Frequently Asked Questions
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partially completed products
- Sub-Assembly shuttle from one line to another line
- Maintenance cart for motors and pumps
- Equipment support (stand-off deck) for navigating loads within plant facilities
- Material shuttle for steel tubing (flat decking with guard rails)
- Elevating platform for assembly process (integrated screw-jack table)
- Sand casting (flat decking)
How Can Transfer Carts Be Customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
- Low Noise: Operates with minimal noise levels for improved working environment
- Maximum Safety: Comprehensive safety features ensure operator and material protection
- Easy Operation: User-friendly design with immediate operational capability
- Easy Implementation: Operates on standard floors without complex permanent installation
- Suitable for All Weights: Modular fabrication supports payloads up to 300 tons per trolley
- For length less than 6m and width less than 2.2m: Transported by 20ft container
- For length between 5.9m and 12m: Transported by 40ft container
- Multiple sets (2-3) can be transported by full container
- Single sets can be transported by LCL Container
- For width beyond 2.2m: Requires flat rack transportation (20 or 40 ft)
- Oversized equipment beyond standard dimensions may require bulk cargo shipping
Contact us for detailed certification information and compliance documentation.
