Heat-Resistant 1-300ton Load Capacity Anti-Explosion Battery-Power Trackless Transfer Cart for Metallurgy
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Wheel Quantity | 4 |
| Running Speed | 0-25 M/min | Battery Voltage | 48V |
| Highlight | Heat-Resistant Trackless Transfer Cart,1-300ton Load Capacity Battery-Power Transfer Cart,Anti-Explosion Electric Transfer Cart |
||
Product Description
Metallurgy Use Heavy Loads Electric Transport Transfer Vehicle Flat Cart
Engineered for extreme metallurgical conditions, this heat-resistant cart features heavy-duty steel construction and multi-layer insulation for reliable operation in high-temperature, dusty environments. With high-torque drives and intelligent controls, it enables smooth transport and precise positioning of ultra-heavy loads (e.g., ladles, cast billets, rolls). The modular platform allows rapid configuration with heat-resistant cradles or protective covers, while integrated safety monitoring and adaptive cooling ensure continuous, safe, and efficient metallurgical production processes.

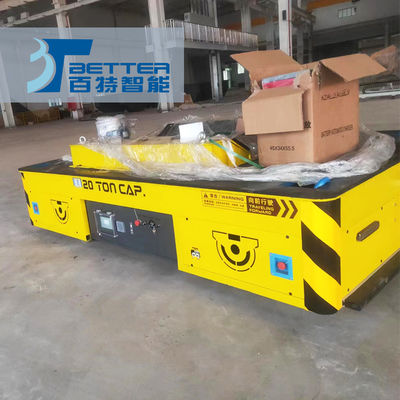

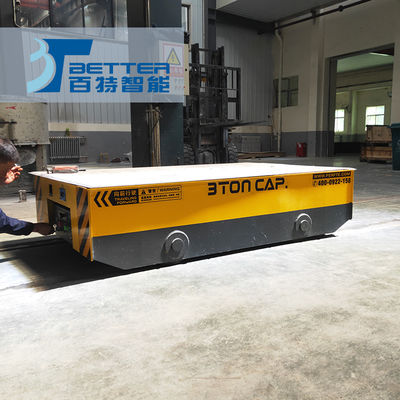

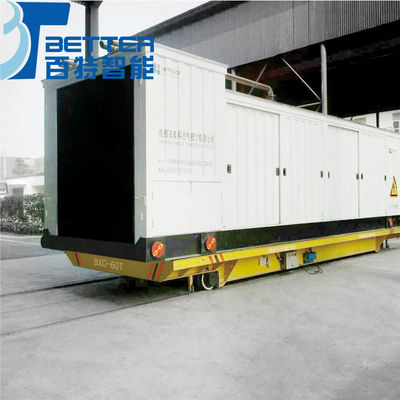

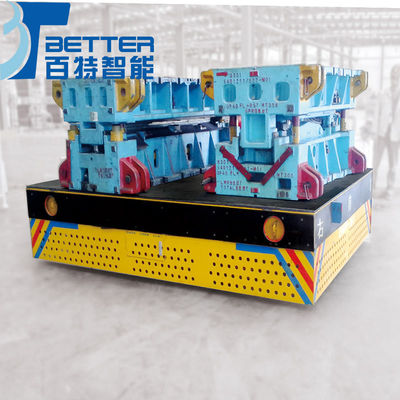

Product Gallery
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hours) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Applications
- High-temperature molten material transfer: In steelmaking and ironmaking workshops, responsible for safe transportation of high-temperature containers such as steel ladles and iron ladles, connecting core process links including smelting, refining and casting.
- Roller and heavy-duty spare parts conveying: In steel rolling mills, responsible for replacement, maintenance and cross-regional transportation of spare parts for heavy equipment like large rolls and furnace bottom rolls.
- Logistics of billets and finished products within the factory: Undertake transportation of high-temperature billets and large steel products from rolling areas to slow cooling pits, heat treatment furnaces or finished product warehouses in hot or cold states.
Customization Inquiry
To customize your transfer cart, please provide the following information:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
Product Advantages
- Low noise: Operates with minimal noise levels
- Maximum safety: Offers guarantee of maximum safety for operators and materials handled
- Easy operation: Simple to drive and operate immediately upon delivery
- Easy implementation: Operates on standard floors without complex or permanent installation
- Suitable for all weights: Handles both small and extremely large loads with modular fabrication and payloads up to 300 tons per trolley
Packaging & Shipping
- For length less than 6m and width less than 2.2m: Transported by 20ft container
- For length between 5.9m and 12m: Transported by 40ft container
- 2-3 sets: Transported by full container
- 1 set: Transported by LCL Container
- For length less than 12m and width beyond 2.2m: Transported by flat rack (20 or 40 ft)
- Equipment beyond above dimensions: Bulk cargo shipping
Certifications
Available upon request - Contact us for detailed certification information
