V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transportation
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Wheel Diameter | 270-600mm |
| Running Speed | 0-25m/min | Battery Voltage | 48-72V |
| Highlight | V-Shaped Frame Coil Transfer Cart,300-ton Load Capacity Battery-Powered Transfer Cart,Anti-Explosion AGV Transfer Cart |
||
Product Description

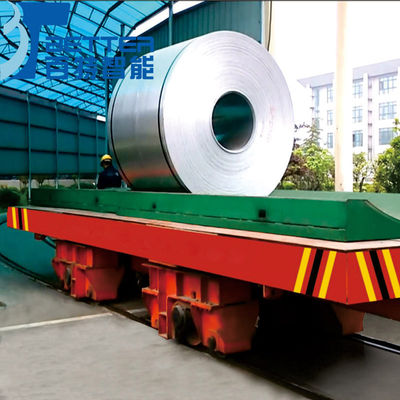

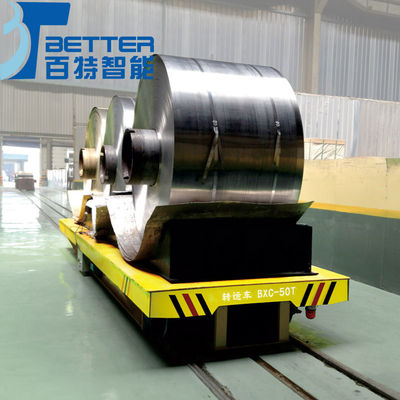

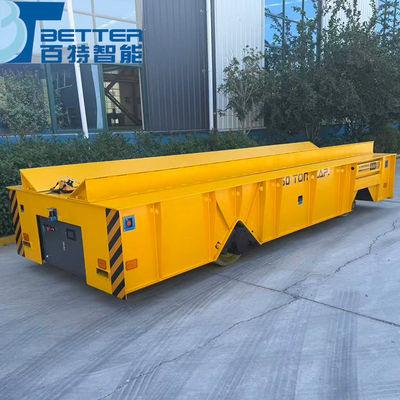

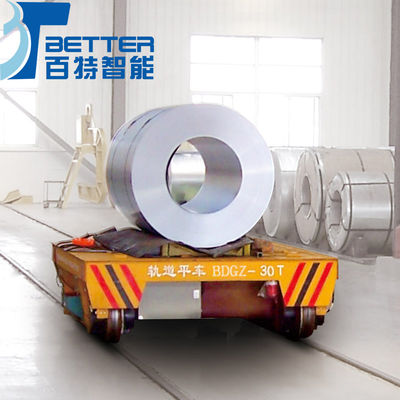

V-Shaped Frame AGV Transfer Cart for Transport Materials Coil
Product Overview
Electric Transfer Trolley for Transport Materials is powered by battery, with the battery installed inside the flat cart. The power supply provides power to DC traction motors through an electrical control system that manages start, stop, advance, retreat, speed control, and other functions. This battery-powered rail transfer cart serves as an efficient electric transport solution within factory environments.
Key characteristics include simple structure, convenient operation, large carrying capacity, easy maintenance, and long service life. Its convenience, economy, practicality, and easy cleaning make it the preferred transport cart for moving heavy objects along fixed routes.
Product Images
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hours) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific workplace activities such as shuttling materials, increasing availability for use. Transfer carts are particularly accommodating for moving long loads through restrictive passageways or doorways.
For heavier loads, transfer carts offer an excellent affordable choice due to their ability to handle substantial weights. Their compact design works well in areas with limited floor space. Another advantage over lift trucks is the customizable cart deck that can be tailored to suit specific load requirements.
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or transferring partially completed products to the next station (tractors, heavy equipment machinery)
- Sub-Assembly shuttle from one production line to another
- Maintenance cart for motors and pumps
- Equipment support (stand-off deck) for navigating loads within plant facilities
- Material shuttle for steel tubing (flat decking with guard rails)
- Elevating platform for assembly processes (integrated screw-jack table)
- Sand casting (flat decking)
How Can Transfer Carts Be Customized?
To customize your transfer cart, please provide the following information:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc.)
- What is the distance to travel?
- Other relevant information or using conditions
Container Shipping: For equipment with length less than 6m and width less than 2.2m, transportation via 20ft container. For length between 5.9m and 12m, 40ft container is used. Multiple sets (2-3) can be transported by full container. Single sets can be shipped via LCL Container.
Oversized Equipment: For equipment with length less than 12m but width beyond 2.2m, flat rack containers (20 or 40 ft) are required. Equipment exceeding these dimensions may require bulk cargo shipping arrangements.
