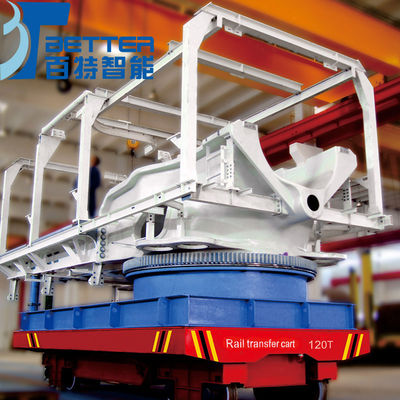

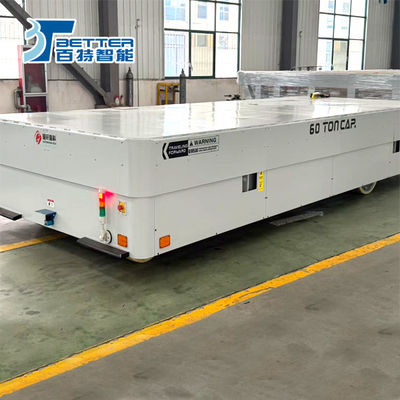

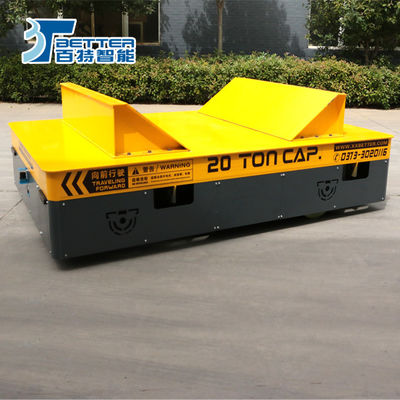

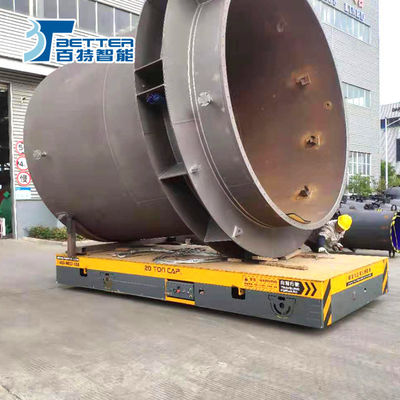

20 Ton Capacity Steel Material Anti-Explosion Trackless Transfer Cart for Heavy Duty Material Transportation
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 20 Ton Capacity Trackless Transfer Cart,Steel Material Electric Transfer Cart,Anti-Explosion Battery-Powered Transfer Cart |
||
Product Description
Metallurgy Industry Electric Track Flat Trolley for 20 Ton Capacity
Metallurgy Industry Electric Track Flat Trolley for 20 ton Capacity
The track electric flat trolley is a common type of motorized material handling equipment widely adopted by factories, enterprises, and heavy industry workshops. This track flat trolley is electrically driven, utilizing either DC or AC motors for propulsion. Operations such as forward movement, reverse, and stopping are controlled via remote control.
This track flatbed trolley is designed for rapid material handling in workshops, warehouses, factories, industrial zones, and other locations. The production and manufacturing processes of enterprises benefit significantly from electric flat cars, which facilitate the movement of materials between storage sites, reduce labor intensity, improve efficiency, enhance safety, and save time.
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
How can Transfer Carts be customized?
Please provide the following information:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
- Low noise - Operates with minimal noise levels
- Maximum safety - Provides guaranteed maximum safety for operators and handled materials
- Easy for operation - User-friendly design allows immediate use for load transportation
- Easy to implement into manufacturing process - Operates on standard floors without complex or permanent installation requirements
- Suitable for All Kinds of Weight - Excellent for handling both small and extremely large loads with modular fabrication and high payload capacity up to 300 tons per trolley
For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container.
For equipment with length between 5.9m and 12m: Transported by 40ft container.
For quantities of 2-3 sets: Transported by full container.
For single set quantities: Transported by LCL Container.
For equipment with length less than 12m and width beyond 2.2m: Transported by flat rack (20 or 40 ft).
For equipment beyond above dimensions: Bulk cargo transportation required.
