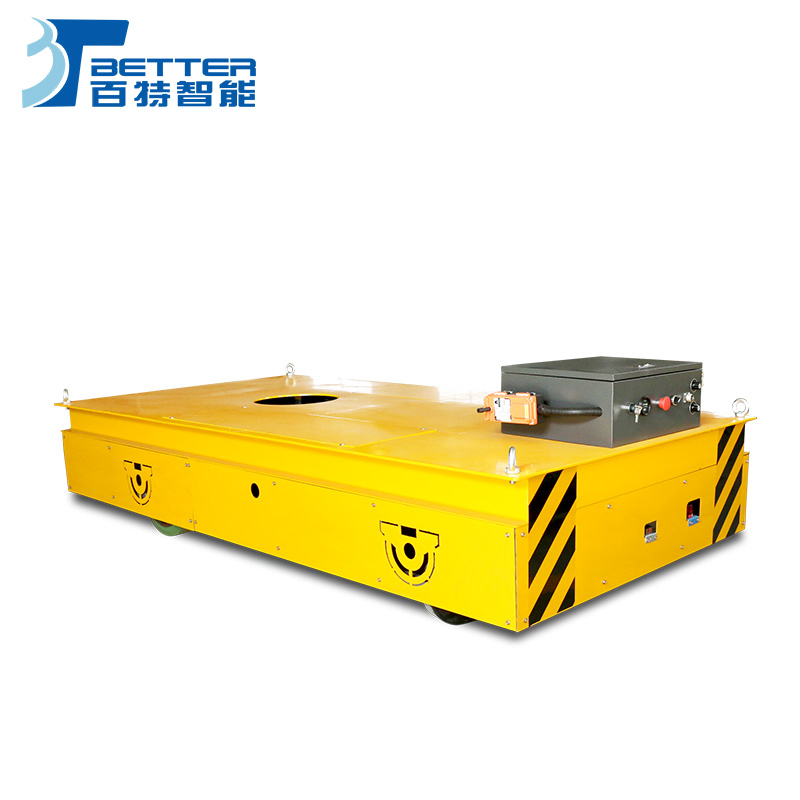

Electric Rail Steel Coil Cart Factory on Curved Transfer Cart
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BHX |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | electric cart transfer,electric transfer cart,rail cart transfer |
||
Product Description
Electric Rail Steel Coil Cart Factory on Curved Transfer Cart
This specialized cart features adaptive bogies and differential control for stable operation on curves (R≥30m). Its reinforced V-cradles with rotating buffer layers maintain coil integrity during 200-ton transfers. Dual power options (cable reel/safety conductor) and anti-sway vector control ensure safe curve negotiation. Deployed in major steel plants, it boosts coil transport efficiency by 40% while eliminating edge damage on curved tracks.
| Model | BHX-2t | BHX-5t | BHX-10t | BHX-16t | BHX-20t | BHX-25t | BHX-30t | BHX-40t | BHX-50t | BHX-63t | BHX-80t | BHX-100t | BHX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
