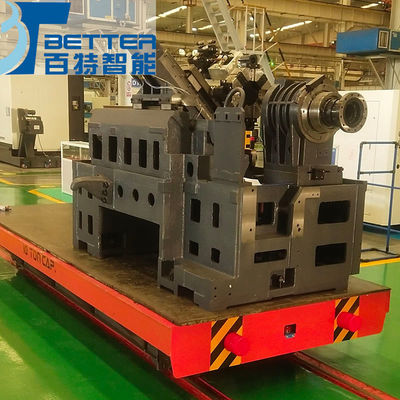

1-50 Ton Motorized Transfer Trolley Electric Rail Trolley For Material Handling
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BDG |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 500/Years | ||
| Highlight | 50 Ton motorized transfer trolley,Material Handling motorized transfer trolley,Electric rail trolley |
||
Product Description
1-50 Ton Motorized Transfer Trolley Electric Rail Transfer Cart for Material Handling
1. Introduction of Railway Truck
The 1-50 Ton Motorized Transfer Trolley is a versatile electric rail cart designed for efficient material handling across a wide range of industrial applications. Covering capacities from light 1-ton loads to heavy 50-ton cargo, it transports raw materials, components, or finished goods reliably on fixed tracks within workshops, warehouses, and production lines. Powered by electricity, it ensures clean, quiet, and low-maintenance operation. With options for customization in drive type (e.g., battery, cable reel), control systems (e.g., remote, automated), and platform design, this trolley streamlines workflow, enhances safety, and adapts to diverse logistical needs in manufacturing, assembly, and storage operations.
The 1-50 Ton Motorized Transfer Trolley is a versatile electric rail cart designed for efficient material handling across a wide range of industrial applications. Covering capacities from light 1-ton loads to heavy 50-ton cargo, it transports raw materials, components, or finished goods reliably on fixed tracks within workshops, warehouses, and production lines. Powered by electricity, it ensures clean, quiet, and low-maintenance operation. With options for customization in drive type (e.g., battery, cable reel), control systems (e.g., remote, automated), and platform design, this trolley streamlines workflow, enhances safety, and adapts to diverse logistical needs in manufacturing, assembly, and storage operations.
2.Application of Railway Truck
Light-duty load application (1-10 tons)
In the electronic assembly workshop, anti-static transportation of precision components is achieved to ensure the safe flow of sensitive components between processes. The food processing plant uses a stainless steel version to complete raw material delivery in a clean environment, meeting hygiene standards.
Medium-duty applications (10-30 tons)
Automobile manufacturing plants use liftable platforms to achieve precise connection between engine assemblies and chassis assembly lines. The metal processing workshop, equipped with dedicated fixtures, completes the automated transfer of various profiles between different processing centers.
Heavy-duty load application (30-50 tons)
In the field of heavy machinery manufacturing, it undertakes the shuttle transportation of large structural components between the welding station and the spraying workshop. Building materials manufacturing enterprises take advantage of its strong momentum to achieve batch transfer of finished boards from the production line to the storage area.
Application in special scenarios
This equipment can be adapted to complex working conditions by selecting different power supply schemes (battery/low-voltage track/cable drum). Chemical enterprises use explosion-proof models to complete raw material transportation, while logistics centers rely on automated navigation versions to achieve intelligent dispatching.
3. Parameter of Railway Truck
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
4.Company Strength
5. Q&A
Will A Railway Truck Be A Good Solution?
Since there are many material handling solutions on the market which one is the right choice? For starters, transfer trucks are movable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Truck?
Transfer railway truck is an excellent affordable choice for the ability to handle heavy loads. The railway trucks are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the truck deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
Coils (V-Groove deck)
Tanks (size/stability for uniformly distributed loads)
Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
Sub-Assembly shuttle from one line to another line
Maintenance cart for motors and pumps
Equipment support (stand-off deck) for navigating loads to locations with a plant facility
Material shuttle for steel tubing (flat decking with guard rails)
Elevating platform for assembly process (integrated screw-jack table)
Sand casting (flat decking)
Tanks (size/stability for uniformly distributed loads)
Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
Sub-Assembly shuttle from one line to another line
Maintenance cart for motors and pumps
Equipment support (stand-off deck) for navigating loads to locations with a plant facility
Material shuttle for steel tubing (flat decking with guard rails)
Elevating platform for assembly process (integrated screw-jack table)
Sand casting (flat decking)
