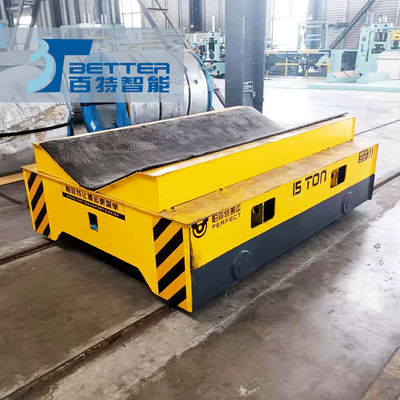

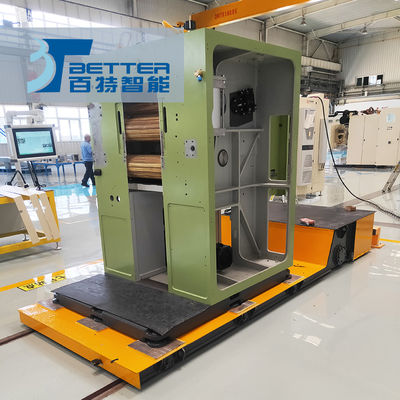

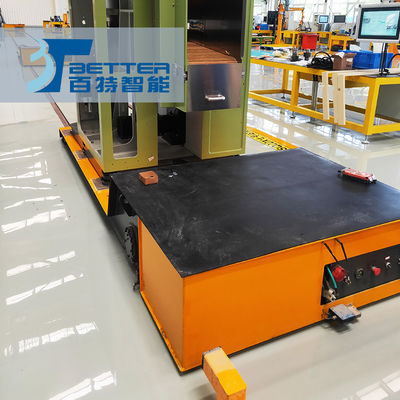

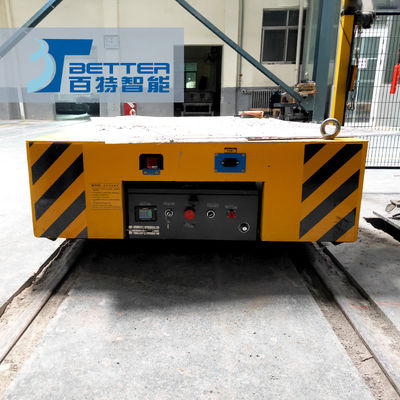

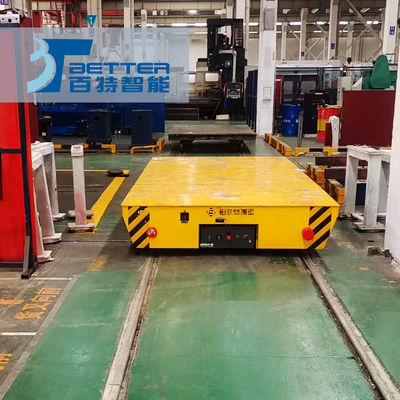

Customizable Rail Transfer Cart for Ship Industry with 1-1500 Tons Load Capacity and Electric Drive
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BHX |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-25 working days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 500/Years | ||
| Highlight | customizable rail transfer cart,rail transfer cart for ship industry,safe material transport cart |
||
Product Description
Customizable Rail Transfer Cart for Safe Material Transport in Ship Industry
This Customizable Rail Transfer Cart is engineered to meet the rigorous demands of the shipbuilding industry, providing a safe and efficient solution for transporting heavy and oversized materials—such as steel plates, hull sections, and engine components—across shipyards and assembly halls.
Application of Electric Railway Carriage
The rail-based design ensures stable, guided movement along predefined paths, reducing the risk of load shifts or accidents in congested work areas. The cart's modular structure allows for customization in size, load capacity (typically 10-200 tons), and deck configurations, including adjustable fixtures or clamping systems to secure irregularly shaped cargo.
Working Principle of Electric Railway Carriage
The Electric Railway Carriage gets power from the battery installed inside the car. The current is supplied to the pulling motor through an electric control system, which enables the car to start, stop, move forward, move backward, turn around, and change speed. The start-up DC motors installed in the car operate smoothly with high torque and low voltage, minimizing impact force to the reducer.
The Battery of Electric Railway Carriage
- The battery capacity depends on the cart load capacity. It can run 4 hours when fully loaded for non-stop working.
- The battery requires 6-8 hours for full charging. When at 30% power, it needs 4 hours to charge fully.
- The battery is easy to replace, requiring only about 5 minutes with a forklift or trolley.
- The service life of the battery is 3-4 years, with 1200-1500 charge cycles under normal use.
Parameters of Electric Railway Carriage
| Model | BHX-2t | BHX-5t | BHX-10t | BHX-16t | BHX-20t | BHX-25t | BHX-30t | BHX-40t | BHX-50t | BHX-63t | BHX-80t | BHX-100t | BHX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Customization Options for Electric Railway Carriage
BETTER specializes in designing and manufacturing various Electric Railway Carriages including:
- Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart
- Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter
- Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer
- Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter
- Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable
Packaging and Shipping of Electric Railway Carriage
- For units less than 6m length and 2.2m width: Transported by 20ft container
- For units between 5.9m-12m length: Transported by 40ft container
- For units beyond standard container dimensions: Transported by flat rack or bulk cargo
