Cross Rail Transfer Cart with dc traction motors and built in battery for electrical control of flat cart start stop and speed control
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | Cross Rail Transfer Cart with DC motors,Electric flat cart with battery control,Transfer cart with speed control |
||
Product Description

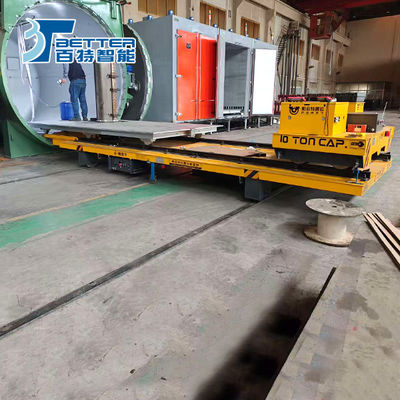

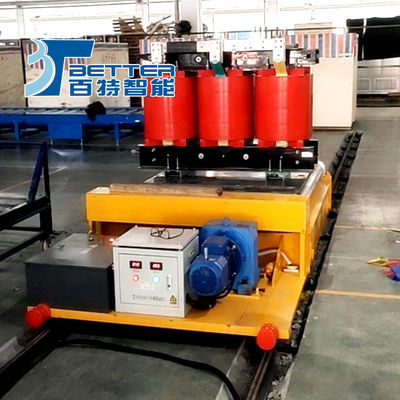

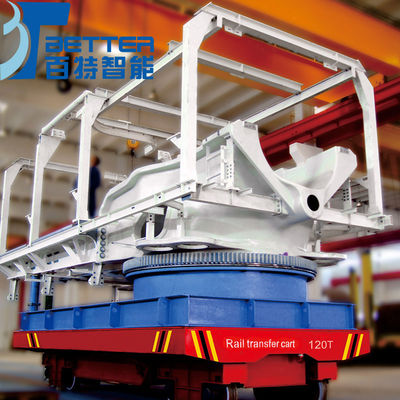

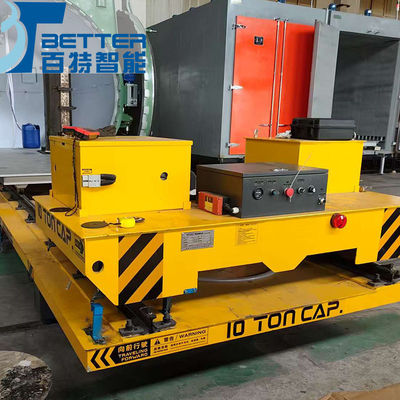

Cross Rail Transfer Cart with DC Traction Motors
A rail trolley featuring DC traction motors and built-in battery system for precise electrical control via handheld remote. This cable-free solution is ideal for flexible and efficient horizontal material transfer in workshop cross tracks and transition areas.
Core Configuration
- Drive System: DC traction motor with large low-speed torque and smooth speed regulation
- Power Supply: Built-in industrial battery pack supporting single-shift operation
- Control Options: Wired/wireless remote control for precise start/stop, directional movement, and multiple speed settings

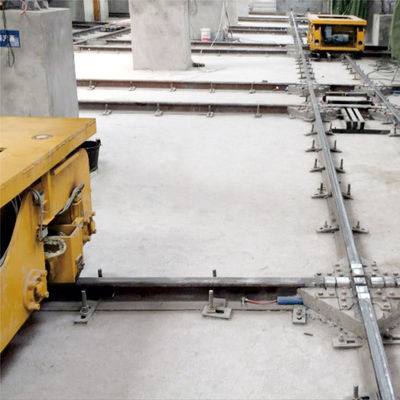

- Track Compatibility: Works with I-beams or light rails for stable lateral movement
Product Gallery
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hours) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Frequently Asked Questions
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific workplace activities such as shuttling materials. Transfer carts are more accommodating for moving long loads through restrictive passageways or doorways. For heavier loads, transfer carts provide an affordable solution with excellent heavy-load handling capabilities. Their compact design works well in areas with limited floor space, and custom deck configurations can be designed to suit specific load requirements.
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or transferring partially completed products
- Sub-assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support (stand-off deck) for navigating loads within plant facilities
- Material shuttle for steel tubing (flat decking with guard rails)
- Elevating platform for assembly processes (integrated screw-jack table)
- Sand casting (flat decking)
How Can Transfer Carts Be Customized?
Please provide the following information for customization:
- Type of load or product to be transferred
- Weight of the heaviest lift or load
- Load dimensions (Length × Width × Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel)
- Distance to travel
- Other relevant information or operating conditions
Product Advantages
Low noise operation for improved workplace environment
Maximum safety guarantee for operators and handled materials
Easy operation with minimal training requirements
Simple implementation into manufacturing processes without complex installation
Suitable for all weight classes, handling loads up to 300 tons per trolley
Packaging & Shipping
Standard Shipping: Units under 6m length and 2.2m width ship in 20ft containers. Units between 5.9m-12m length ship in 40ft containers. Multiple units can be consolidated in full containers.
Oversized Shipping: Units exceeding 2.2m width require flat rack containers (20ft or 40ft). Equipment beyond standard dimensions may require bulk cargo shipping arrangements.
