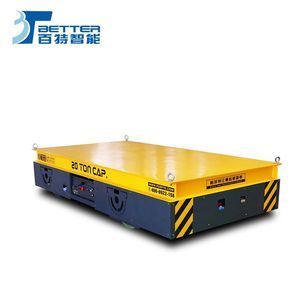

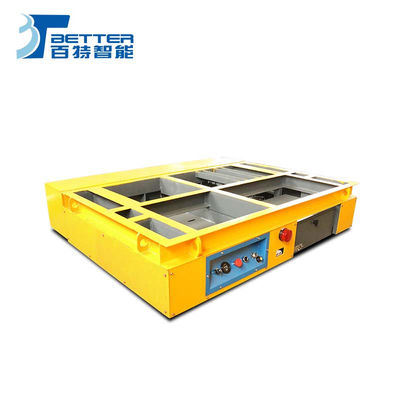

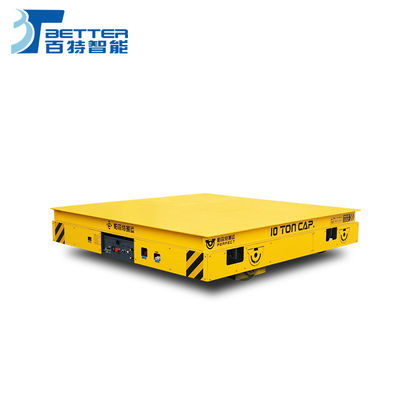

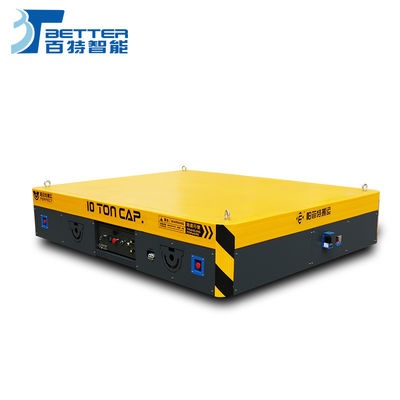

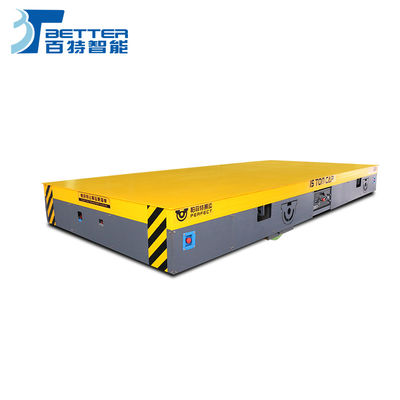

Customizable Trackless Transfer Cart with Load Capacities up to 100 Tons and Versatile Power and Control System Configurations
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Motorized Handling Vehicle | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Load Capacity | 1-300 Ton |
| Special Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Control Mode | Pendant/Remote/PLC Control |
| Power Mode | Battery, Cable, Conductive Rails | Material | Steel |
| Transport Package | The Whole Cart Will Be Packed By Tarp. | Specification | 2000*2000*500 |
| Trademark | BETTER | Origin | Xinxiang |
| HS Code | 84289090 | Production Capacity | 50 Sets/Month |
| Highlight | customizable trackless transfer cart,100 ton load capacity transfer cart,versatile power control transfer cart |
||
Product Description
Customizable Trackless Transfer Cart with Load Capacities up to 100 Tons
This premium trackless material handling solution is engineered for transporting overweight and oversized materials with maximum flexibility. Featuring load capacities from 10 to 300 tons and customizable power and control systems, it provides a versatile mobile ground solution for heavy manufacturing, energy, and large-scale infrastructure applications.
Core Features & Configuration
Load Capacity
Robust load-bearing structure supports 10-300 tons, with structural reinforcement available for higher requirements.
Power System
Pure electric drive with large-capacity lithium battery pack for zero emissions, low noise operation, and fast charging/battery swapping capabilities.
Control Systems
- Remote Control: Industrial-grade wireless remote for flexible, safe operation
- Automatic Navigation: Upgradeable to laser SLAM or visual navigation for fully autonomous operation
Walking Mechanism
Multi-wheel set independent suspension design with standard heavy-duty casters and optional McNamm wheels for omnidirectional movement.
Advanced Capabilities
Core Functions
- Complete customization of tonnage, dimensions, power, control, and chassis configuration
- Omnidirectional movement with lateral, diagonal travel and zero turning radius rotation
- Ultra-low pressure distribution protects expensive flooring surfaces
Safety Systems
- Active Safety: 360° anti-collision radar/laser scanning, audible/visual alarms, emergency stop
- Passive Safety: Heavy-duty anti-collision beams, anti-overturning design, automatic parking brake
- System Security: Redundant controllers, dual confirmation for key actions, real-time diagnostics
Customization Options
- Functional Modules: Hydraulic lifting, platform tilting, rotation, side movement, and specialized fixtures
- Environmental Adaptation: Explosion-proof, high-temperature, corrosion-resistant, and ultra-low temperature versions
- System Integration: Standard interfaces for seamless MES/WMS integration
Industry Applications
Designed for complex internal logistics handling non-standard, heavy, and high-value materials across multiple industries:
- Heavy Equipment Manufacturing: Assembly and transport of mining machinery, engineering equipment, and generator sets
- Aerospace: Precision movement of aircraft fuselage sections, engines, and composite material molds
- Ships and Offshore Engineering: Transportation and positioning of hull sections and large modules
- Energy Construction: In-plant circulation of wind turbine blades, towers, transformers, and nuclear power components
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
About Our Company
Henan BETTER Smart Equipment Co., Ltd. specializes in designing and manufacturing transport systems to meet every material handling requirement. Our product range includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolleys, Scissor Lift Tables, Turntables, and numerous specialty items. We design custom transfer cars for all industries and manufacture them according to client specifications for rail use, autonomous battery operation, and special applications.
Customization Process
Customization Inquiry
How Can Transfer Carts Be Customized?
Please provide the following information:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
