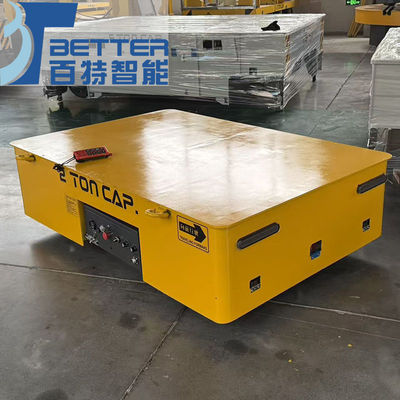

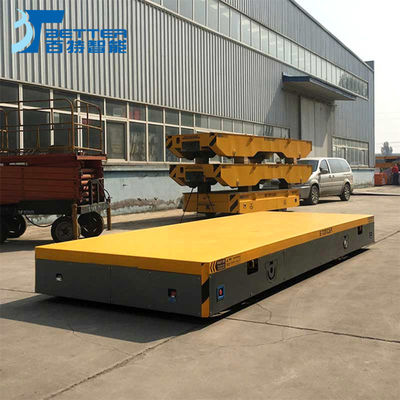

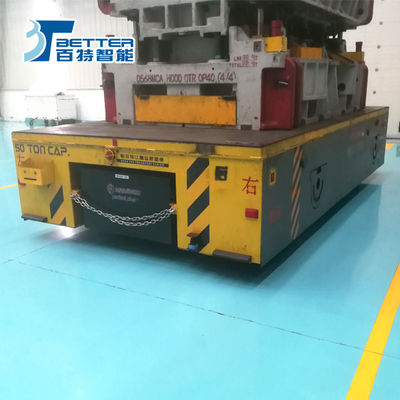

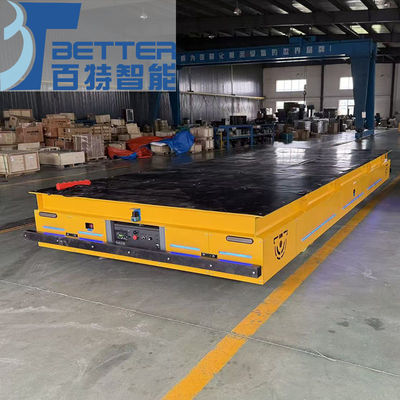

Factory Supplying 50 Tons Electric Material Transfer Car For Construction Material Handling

One of the core products of our factory is a 50-ton heavy-duty electric track transfer vehicle, which is tailor-made for construction projects, building materials production and large-scale infrastructure projects. It is specially designed for the fixed-point and efficient transportation of prefabricated components, steel, sand and gravel aggregates, large equipment modules and other materials in high-load and continuous factories or construction sites. With the stability, environmental friendliness and economy of electric drive, it replaces traditional internal combustion equipment and becomes the logistics backbone within modern building materials production bases and large construction sites.

Core configuration

Load capacity: Rated 50 tons. The vehicle body adopts a heavy-duty box girder structure, ensuring stable load-bearing.

Power supply mode: Standard safety sliding contact line power supply (preferred for continuous operation), or large-capacity cable drum power supply (flexible wiring) can be selected.

Drive system: AC variable frequency motor drive, smooth start and stop, adjustable speed.

Control mode: Supports driving operation and wireless remote control, adapting to different working habits and safety requirements.

Rail system: Compatible with QU80 and above heavy-duty rails, providing a reliable operational foundation.

Core functions

Heavy-duty continuous transportation: Specifically designed for 50-ton class materials, it can meet the high-frequency transfer requirements of heavy building materials such as prefabricated beams and slabs, and large steel structures.

Precise fixed-point parking: Through frequency conversion control, slow approach and precise alignment are achieved, facilitating connection with equipment such as mixing plants, placing machines, and assembly lines.

High reliability and low maintenance: With a robust structure and a mature and reliable electrical system, it is suitable for long-term stable operation in the dusty and vibration-prone environment of building materials factories.

Cleaning operation: Pure electric drive, zero emissions, low noise, improving the factory area environment.

Security configuration

Operation safety: Heavy-duty anti-collision beams are installed at both ends of the vehicle body, and it is equipped with sound and light alarms and emergency stop buttons.

Electrical safety: The control system is equipped with standard protections such as overcurrent, overload and phase loss.

Customized function

Platform customization: Flat plates, recessed countertops or fixed columns can be customized to match special building materials such as cement pipe piles and prefabricated wall panels.

Function expansion: It can be equipped with a weighing system, a hydraulic side-shifting or rotating platform to enhance operational flexibility.

Designed specifically for fixed-route heavy-load transportation in building materials production and large-scale construction sites:

Concrete prefabricated component factory: Transportation of large prefabricated beams, slabs and columns from the curing area to the storage area or loading area.

Steel structure processing base: The flow of finished H-beams, trusses, etc. between workshops and storage yards.

Large-scale infrastructure projects: Transporting heavy construction materials such as tunnel segments and large formwork on fixed construction access roads (tracks).

     ---- Low noise  It causes low noise level.
      ---- Maximum safety  Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
     ---- Easy for operation  These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
      ---- Easy to implement into manufacturing process  Operates on standard floors; Do not require complex or permanent installation
      ---- Suitable for All Kinds of Weight  The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
