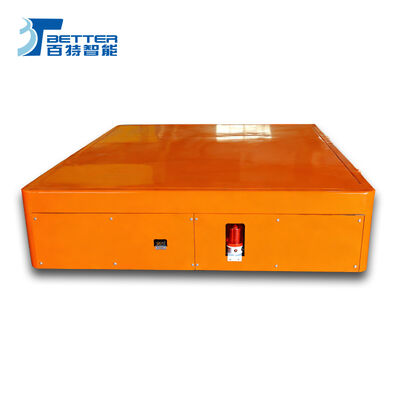

High-Throughput Reconfigurable Intelligent Cargo Transfer Cart for Plate Transport
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Heat-Resistant, Lifting, Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | reconfigurable cargo transfer cart,high-throughput plate transport cart,trackless intelligent transfer cart |
||
Product Description
High-Throughput Reconfigurable Intelligent Cargo Transfer Cart for Plate Transport
This intelligent reconfigurable transportation device is specifically designed for high-throughput transportation scenarios involving steel, aluminum, stone, glass, and composite material boards.
Core Configuration
- Load Capacity: Standard series ranges from 1 to 300 tons with custom higher loads available
- Platform System: Modular reconfigurable support platform with flexible support point adjustment
- Walking System: McNamur wheels or omnidirectional wheel sets for all-direction mobility
- Drive System: Multiple independent servo motors for rapid response and precise positioning
- Navigation: Laser SLAM natural navigation (standard) with magnetic nails/QR code options
- Power System: High energy density battery pack for continuous operation
- Control Mode: Multi-mode control via touch screen, wireless remote, and central dispatch
Core Functions
- Unidirectional Flexible Movement: No turning radius required with direct side-shift capability
- Multi-Vehicle Collaboration: Central scheduling system for intelligent task allocation and collision avoidance
- Automatic Charging: Low battery management with automatic charging station return
Safety Configuration
- 360° Safety Protection: Multiple line laser radars, ultrasonic sensors, and mechanical anti-collision strips
- Emergency Stop: Multiple emergency stop buttons on vehicle body and remote control
- Warning System: Clear sound and light warnings during operation and maneuvering
Customization Features
- Platform Customization: Power drum lines, lifting platforms, or flexible support pads
- Environmental Adaptation: High-temperature, explosion-proof, or cleanroom versions
- System Integration: Seamless connection with MES/ERP/WMS systems
- Extension Arms: Telescopic extension arms for ultra-wide plate transport
Application of Electric Handling Car
Designed for high-throughput intelligent material flow throughout sheet material processing and circulation:
- Steel Processing: Automatic transfer between cutting lines, bending lines, and welding stations
- Aluminum Materials: Unmanned handling during rolling, annealing, and surface treatment
- Stone Processing: Smooth transportation of marble and granite slabs during cutting and polishing
- Glass Manufacturing: Precise transfer of large-sized glass panels during processing
- Composite Materials: Flexible handling of carbon fiber and glass fiber plates
- Ships & Heavy Machinery: Batch transfer of marine steel plates and pressure vessel sheets
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
About Xinxiang BETTER Smart Transport Co., Ltd.
Specializing in the design and manufacture of electric handling cars to solve every material handling requirement. Our product range includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolleys, Scissor Lift Tables, Turntables, and many other specialty items.
Transportation & Surface Compatibility
Surface Requirements: The electric handling car is designed for level surfaces with capability for inclines up to 4°. Standard applications include smooth concrete floors with optional urethane wheels for non-marking epoxy floor systems.
Not Recommended: Uneven surfaces such as gravel, rough terrain, or badly cracked concrete floors.
