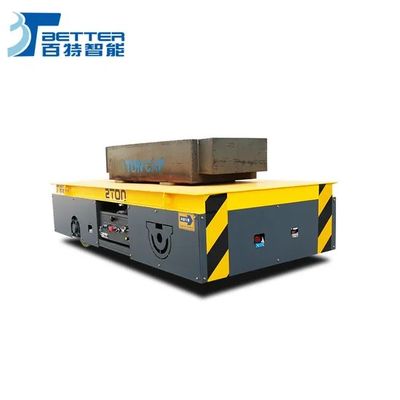

120ton Battery-Powered Electric Transfer Cart with LED Working Light and Stepless Speed Control
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 3000*2000 To 6000*2300 |
| Ground Clearance | 50mm | Running Speed | 0-20 M/min |
| Motor Power | 3 To 15 KW |
Product Description
120ton Electric Die Transport Transfer Cart with Working Light
This industrial cart is engineered for transporting large molds with a 120-ton capacity. Its low-center-of-gravity design and reinforced frame ensure stability under heavy loads, while integrated LED lights provide clear illumination for precise positioning in dimly lit workshops.
The intelligent electric drive system enables stepless speed control and remote operation, facilitating flexible mold transfers between assembly and storage areas. With a modular platform adaptable to various mold sizes and optional hydraulic lifting/rotation features, it significantly improves mold changeover efficiency. Ideal for automotive stamping and injection molding facilities, it enhances workshop logistics with reliable performance and user-centric design.

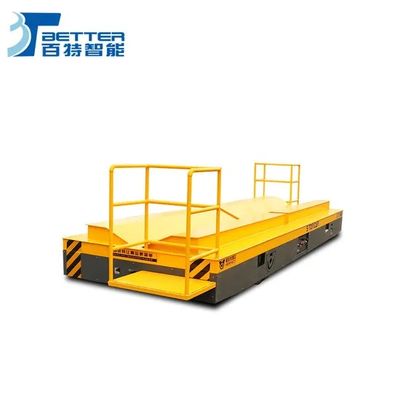

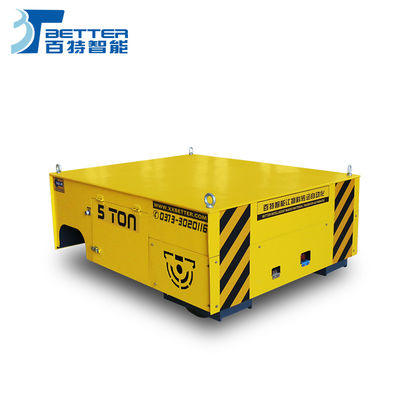

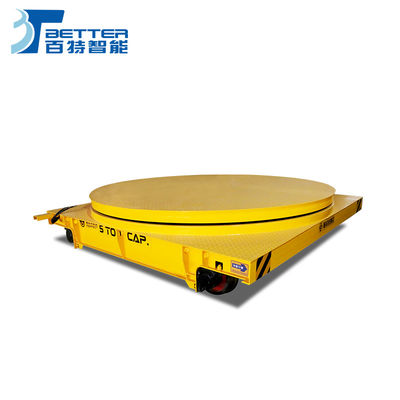

Detailed Photos
Product Specifications
| Model | BWP-5t | BWP-10 | BWP-15 | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
|---|---|---|---|---|---|---|---|
| Rated Load (t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted Rated Load (t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of Frame | Steel plates welded, beam structure | ||||||
| Thickness of Steel Plate | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| Cart Weight (t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Max. Wheel Load (t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||||
| Ground Clearance (mm) | 50 | ||||||
| Table Size (mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| Height of Cart (mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Turning Type | Turning while driving with no stop | ||||||
| Control Method for Turning | Control button | ||||||
| Turning Structure | Mechanical | ||||||
| Motor Power (KW) | 3 | 4.4 | 6 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 350-2/220-2 | 350-2/240-2 | 400-2/240-2 | 400-2/320-2 | 540-2/360 | 580-2/360-2 | 580-2/360-2 |
| Wheel Material | ZG55+hydropurture | ||||||
| Running Speed (m/min) | 0-20 | ||||||
| Brake Principle | Electric magnetic brake | ||||||
| Ground Balance | Mechanical automatic adjustment | ||||||
| Operation Method | With wire or no wire | ||||||
| Battery Model | D-250 24pcs | D-330 24pcs | D-400 24pcs | D-440 24pcs | D-250 36pcs | D-330 36pcs | D-440 36pcs |
| Battery Maintenance | Free of maintenance | ||||||
| Charger's Installation | Installed on cart | Split-type | |||||
| Cart Color | Yellow and warning sign | ||||||
| Charger's Function | Automatic stop for obstacles | ||||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||||
| Warning Equipment | Sound and light | ||||||
| Other Functions | Turning light, night light and power display | ||||||
Applications
Safe Transportation and Positioning of Large Molds
In automotive manufacturing and large die-casting workshops, responsible for safe and precise transfer and positioning of 120-ton large molds between storage area, maintenance area and press production line.
Reliable Operation in Low-Light Environments
Built-in work light ensures clear operating field of vision in corners with insufficient light, at night or in shadow areas of equipment, guaranteeing safety and accuracy of mold alignment and personnel operation.
Support for Rapid Mold Changing Process
Integrated into automated mold changing system, enables rapid mold delivery, transportation and online placement. Work light directly illuminates press surface, assisting in quick and precise mold clamping.
Frequently Asked Questions
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partially completed products
- Sub-Assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support for navigating loads within plant facilities
- Material shuttle for steel tubing with guard rails
- Elevating platform for assembly processes
- Sand casting applications
How Can Transfer Carts Be Customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- Weight of the heaviest lift or load
- Dimensions (Length; Width; Height)
- Trip time and frequency (# of Trips per shift, Shifts per day)
- Travel area requirements (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- Distance to travel
- Other relevant information or using conditions
Low Noise Operation
Causes low noise level for improved working environment.
Maximum Safety
Offers guarantee of maximum safety for operators and materials handled. We prioritize safety of everyone involved in the job.
Easy Operation
These vehicles are easy to drive, enabling immediate use for transporting loads with comprehensive support.
Easy Implementation
Operates on standard floors without requiring complex or permanent installation.
Suitable for All Weights
Superb for handling both small and extremely huge loads with modular fabrication and high payloads up to 300 tons per trolley.
- For length less than 6m and width less than 2.2m: Transported by 20ft container
- For length between 5.9m and 12m: Transported by 40ft container
- 2-3 sets: Transported by full container
- 1 set: Transported by LCL Container
- Length less than 12m and width beyond 2.2m: Requires flat rack (20 or 40 ft)
- Equipment beyond above dimensions: Consider bulk cargo shipping
