20T Load Capacity 1m Lift Height Battery Powered Hydraulic Lift Table Scissor Lift
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000*2000*500 |
| Rated Load | 20t | Lift Height | 1m |
| Running Speed | 0-20 M/min | ||
| Highlight | 20T Load Capacity Hydraulic Lift Table,1m Lift Height Scissor Lift,Battery Powered Trackless Transfer Cart |
||
Product Description
20t Pallet Lifting 1m Hydraulic Lift Table Sizzer Lifts Transfer Cart
Product Overview
The 20T Pallet Lifting Hydraulic Lift Table is a robust industrial scissor lift designed for heavy-duty applications. Featuring a powerful hydraulic system integrated with a crossed-scissor mechanism, it smoothly and safely raises and lowers palletized loads up to 20 tons to a precise 1-meter working height. This equipment is essential for loading/unloading, workstation feeding, and ergonomic positioning in warehouses, manufacturing, and logistics centers. By eliminating manual heavy lifting, it significantly enhances operational safety, improves workflow efficiency, and reduces the risk of product damage and worker injury.

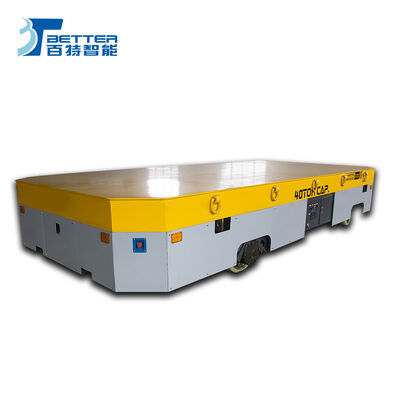

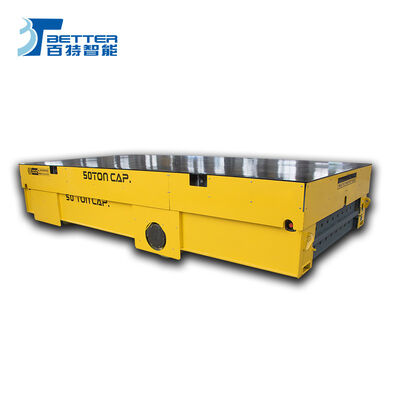

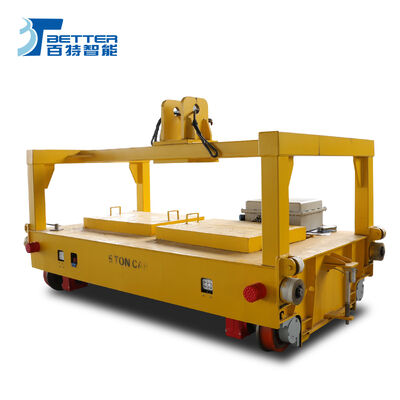

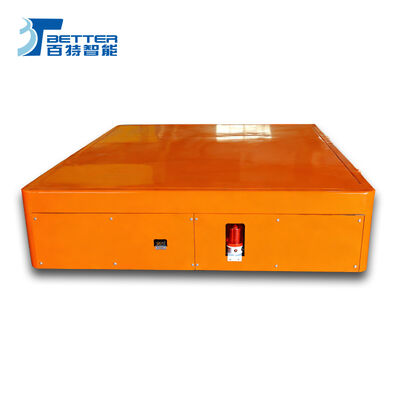

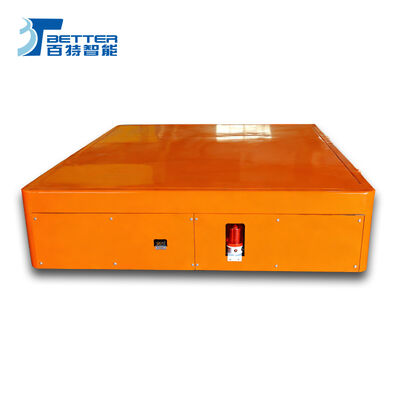

Product Images
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
How can Transfer Carts be customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
- Low noise - Operates with minimal noise levels
- Maximum safety - Offers guarantee of maximum safety for operators and handled materials
- Easy for operation - Simple to drive and operate immediately upon delivery
- Easy to implement into manufacturing process - Operates on standard floors without complex or permanent installation
- Suitable for All Kinds of Weight - Excellent for handling both small and extremely large loads with modular fabrication and high payload capacity up to 300 tons per trolley
- For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container
- For length between 5.9m and 12m: Transported by 40ft container
- 2-3 sets: Can be transported by full container
- 1 set: Can be transported by LCL Container
- For length less than 12m but width beyond 2.2m: Requires flat rack (20 or 40 ft) transport
- Equipment beyond above dimensions: Requires bulk cargo transport based on quantity
Certifications available upon request
