Smooth Material Handling In Workshop And Dock Environments Container Straddle

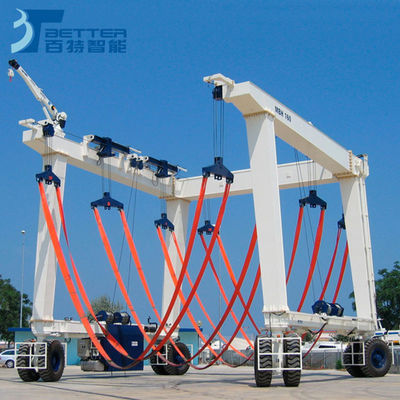

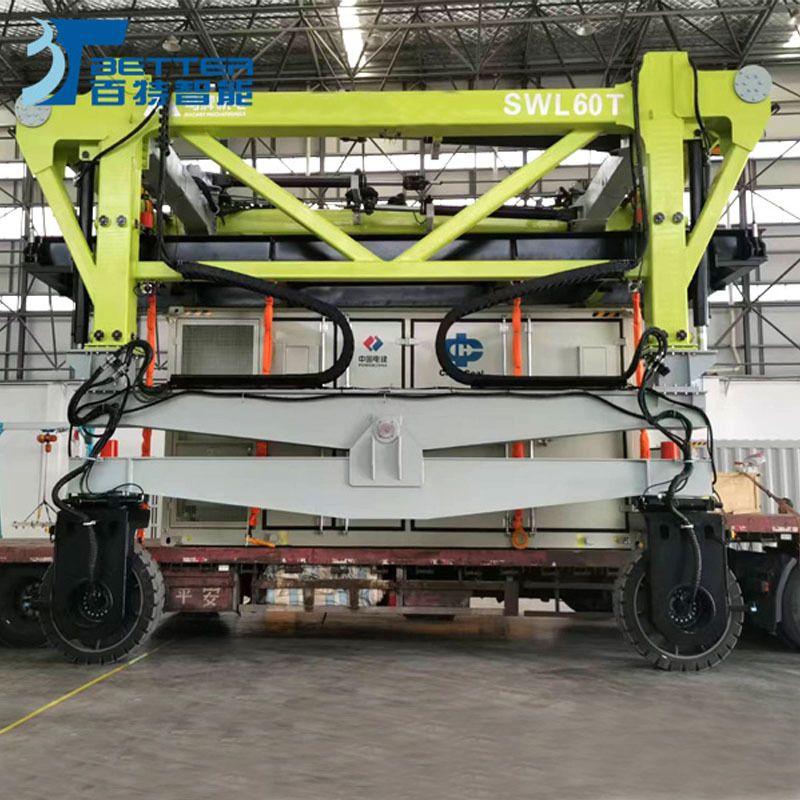

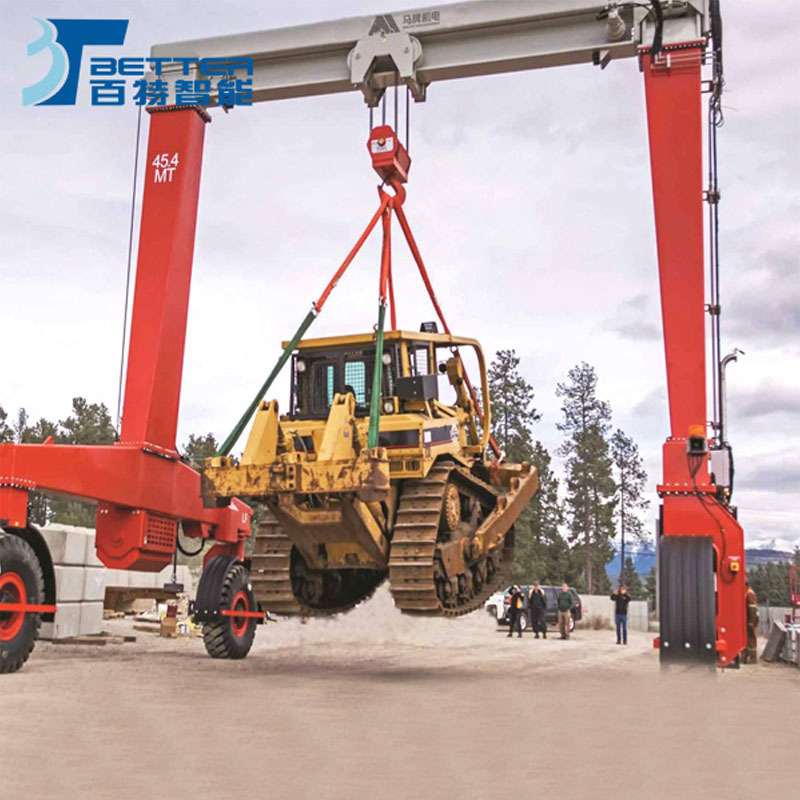

The Electric Remote-controlled Straddle Carrier is a high-efficiency handling equipment designed for heavy-duty cargo transfer in workshops, terminals, and storage yards. It features a straddling design that allows it to move over and lift large items like containers, machinery, or bulk materials, enabling flexible and direct "pick-and-carry" operation. Combined with the electric remote-controlled cargo transfer cart, it forms an integrated logistics solution for indoor and outdoor environments. These systems enhance operational efficiency, reduce manual labor, improve safety through remote control, and support seamless material flow in settings such as manufacturing plants, ports, and logistics hubs.

2.Application

Workshop material turnover
In large production workshops, gantry-type forklifts can cross production lines or stack materials, directly grasping and transporting large workpieces and raw materials. The transfer vehicle can flexibly shuttle between various workstations to complete the fixed-point delivery of components and semi-finished products
Cargo handling at the wharf
At the factory's wharf or freight area, gantry-type forklifts can quickly complete the loading and unloading operations of containers and large equipment. The transfer vehicles cooperate to complete the short-distance transportation of goods from the wharf to the storage area
Warehousing and logistics management
In the storage area, gantry-type forklifts facilitate the three-dimensional storage and retrieval of goods as well as their relocation within the warehouse. The transfer vehicle is responsible for the allocation and turnover of goods between different warehouse areas
Special working environment
In work areas with limited space, gantry-type forklifts take advantage of their crossing characteristics to keep the passage unobstructed. The transfer vehicle, with its flexibility and precise positioning, accomplishes the transportation and positioning of precision equipment

3.Parameter

4.Manufacturing process of warehouse transportation vehicle

CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.

5.Product Details

6.Packaging&Shipping

*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.

7.FAQ

How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

8.Certifications

9.Other products we can offer

10.Customers' Visit

Henan PETTER Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of Flat Transfer Trolley to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.
