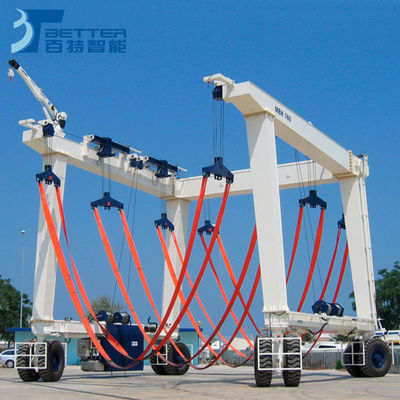

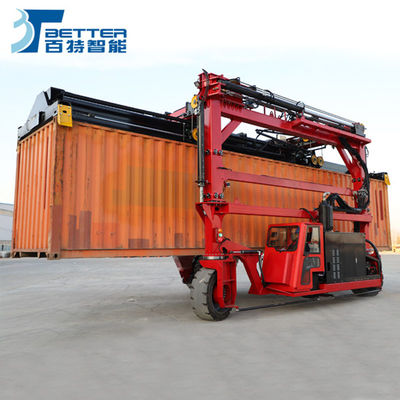

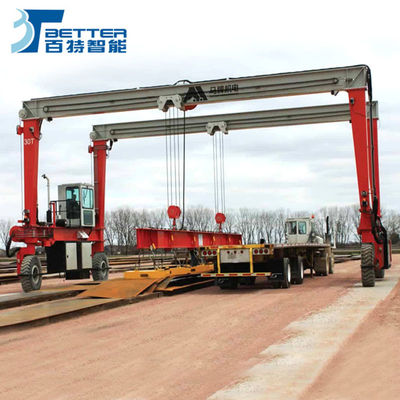

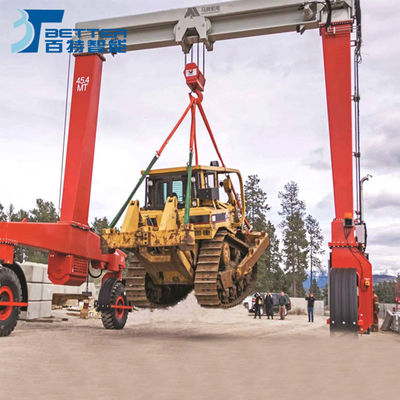

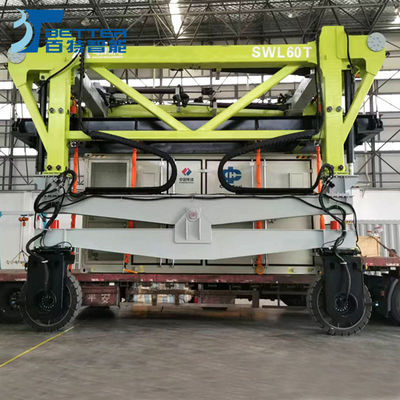

Electric Straddle Carrier Remote Controlled Cargo Transfer Cart for Workshop and Terminal Featuring Durable Construction
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Straddle Carrier | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Control Mode | Remote Control, Ground Control Panel | Safety Devices | Audio-visual Alarm, Anti-collision Bumper, Emergency Stop Button |
| Application Scenario | Internal Workshop Transport, Production Line Feeding | Customization Options | Customizable Load, Size |
| Material | Steel | Color | Customized |
| Highlight | remote controlled electric straddle carrier,durable workshop cargo transfer cart,terminal electric straddle carrier |
||
Product Description
Electric Straddle Carrier Remote Controlled Cargo Transfer Cart
Heavy-duty, highly mobile material handling equipment designed for modern workshop interiors and terminal scenarios such as ports and docks. Features a unique "leapfrog" design that allows the vehicle to cross over goods or tracks for direct loading and unloading operations.
Core Parameter Configuration
Load Capacity
Standard models range from 10 tons to 60 tons, with higher capacities available through customization.
Power Supply
High-efficiency lithium battery pack with fast charging and battery swapping options. Optional automatic energy recovery system available.
Drive & Movement
Four-wheel independent servo motor drive with heavy-duty universal wheels or custom steel wheels. Multiple movement modes including straight driving, sideways driving, diagonal driving, and turning in place.
Control System
Industrial-grade wireless remote control with backpack, equipped with intelligent controller.
Vehicle Structure
High-strength box beam steel construction with reinforced load-bearing parts. Surface treated with shot blasting and heavy-duty anti-corrosion coating.
Product Details & Features
Core Functions
- All-round mobility with multi-mode walking capabilities for narrow passages
- Remote control precision operation with no blind spots
- Integrated hydraulic lifting system with millimeter-level precision
- Optional in-vehicle intelligent terminal for battery, speed, and diagnostics display
Safety Configuration
- Triple safety protection: mechanical anti-collision, electrical emergency stop, remote control emergency stop
- 360° panoramic monitoring with radar/ultrasonic anti-collision system
- Electrical safety with overvoltage, overcurrent, over-temperature and phase loss protection
- Slope anti-rolling function for parking and incline safety
Customization Options
- Special lifting gear, clamps, or load-bearing platforms for various cargo types
- Special environment versions: explosion-proof, dust-proof, low-temperature, or high-temperature
Applications
Primarily used in flat logistics transfer scenarios including:
- Manufacturing workshops: Transferring large components and molds between production lines
- Logistics warehouses and yards: Container transfer, stacking, and large goods movement
- Steel and building materials industry: Circulation and loading of coils, plates, and pipes
- Ports and railway freight yards: Short-distance container transportation with cranes
Technical Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Manufacturing Process
CNC Cutting: Steel plates are cut in the CNC workshop with subsequent chip removal and layout.
Preliminary Assembling: Cut steel plates assembled according to design specifications.
Welding: Automated welding of assembled components.
Post-Weld Treatment: Welding sections tested, polished, and stress-relieved.
Spray Primer: Two layers of zinc-rich epoxy anti-rust primer applied.
Assembling: Structure parts assembled with wheels, motors, and gearboxes.
Finish Painting: Final coating applied after primer inspection.
Debugging: Comprehensive testing including no-load and load testing before storage.
Packaging & Shipping
• Length < 6m, Width < 2.2m: 20ft container
• Length 5.9m-12m: 40ft container
• 2-3 sets: Full container
• 1 set: LCL Container
• Length < 12m, Width > 2.2m: Flat rack container
• Beyond standard dimensions: Bulk cargo shipping
Frequently Asked Questions
For customization, please provide the following information:
- Type of load or product to be transferred
- Weight of heaviest lift or load
- Dimensions (Length, Width, Height)
- Trip time and frequency (# of trips per shift)
- Travel area specifications (rail/cement floor, indoor/outdoor)
- Travel distance and other relevant operating conditions
Certifications
Additional Products
Company Strength & Customer Visits
BETTER has over a decade of experience in industrial heavy-duty intelligent logistics solutions with a professional R&D and manufacturing team.
- Modern R&D center and production base with large component processing capabilities
- Extensive project experience in automotive manufacturing, port logistics, and steel industries
- Customer visits available to R&D centers, production workshops, and operational project sites
