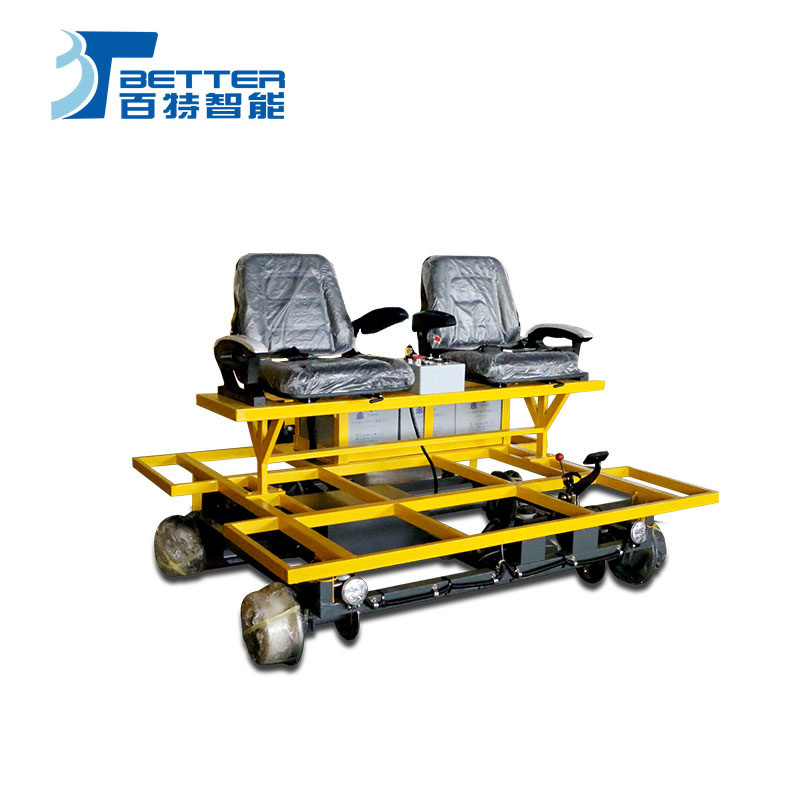

Track Geometry Measuring Trolley Delivers Precise Data For Long Term Rail Maintenance
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BHX |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 1 ton track geometry trolley,300 ton track geometry measuring trolley,Heavy Duty track geometry trolley |
||
Product Description
This Track Geometry Measurement Trolley Delivers Precise Data For Long-term Rail Maintenance
Introduction of Material Transfer Equipment
This Track Geometry Measurement Trolley is an advanced rail inspection system designed to deliver highly precise data for long-term rail maintenance planning. Equipped with laser scanners, inertial sensors, and optical measurement modules, it captures critical parameters—including track alignment, gauge, cross-level, and twist—with millimeter-level accuracy. The collected data enables predictive maintenance by identifying gradual deformations or early-stage defects, allowing operators to prioritize repairs and allocate resources efficiently. By supporting proactive infrastructure management, this trolley helps extend rail service life, enhance operational safety, and reduce lifecycle maintenance costs for railways, metro systems, and industrial transit networks.
Application of Material Transfer Equipment
Preventive maintenance decision-making
Establish an orbital state evolution model through continuous detection
Accurately predict progressive diseases such as rail wave wear and loose fasteners
Guide the forward deployment of maintenance resources
Optimization of the major overhaul plan
Provide precise starting and ending point positioning for major line overhauls
Calculate the optimal starting dose based on the measured data
Avoid overmaintenance or undermaintenance
Quality acceptance evaluation
Conduct acceptance inspection on new lines after construction or major overhauls
Automatically generate assessment reports that comply with industry standards
Establish a digital file of the initial line status
Long-term performance monitoring
Construct the quarterly/annual track status change curve
Analyze the geometric deformation laws of the track under different load conditions
Provide data support for the optimization of the track structure
Working Principle of Material Transfer Equipment
Parameter of Material Transfer Equipment
| Model | BHX-2t | BHX-5t | BHX-10t | BHX-16t | BHX-20t | BHX-25t | BHX-30t | BHX-40t | BHX-50t | BHX-63t | BHX-80t | BHX-100t | BHX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Machining Of Material Transfer Equipment
Packaging and Shipping of Material Transfer Equipment
Packaging and Shipping of Material Transfer Equipment
*For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
