Customized Industrial Trailer and Electric Transfer Cart for in Loop Production Line and Steel Workpiece Transport Solutions
Product Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 500/Years |
Product Description
Customized Industrial Trailer and Electric Transfer Cart Solutions
Product Overview
Integrated logistics solutions designed for the transfer of ring production lines and steel workpieces including billets, tubes, sections, and castings. Available in electric rail and trackless transport trailer models, these solutions can be combined according to process requirements to achieve efficient material transfer across ring lines, straight lines, and workshops.
Electric Transfer Vehicle
- Load capacity: 1 - 1500 tons, customizable as per requirements
- Power supply method: Lithium battery / Lead-acid battery / Contact cable / Cable reel (optional)
- Drive method: Motor drive with frequency conversion, speed adjustable from 0 to 25 meters per minute
- Walking mode: Track type / Non-track type (optional)
- Control method: Wireless remote control + Vehicle-mounted line control + PLC automatic control

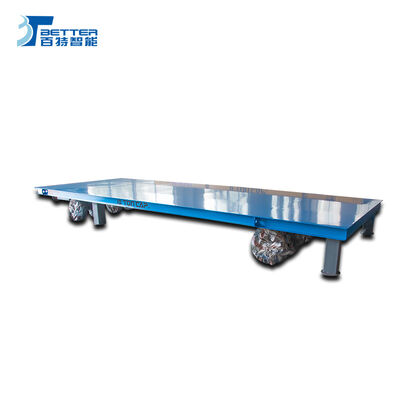

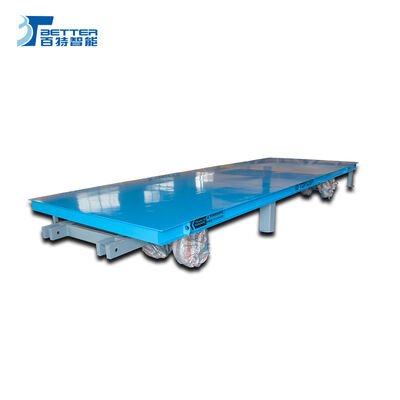

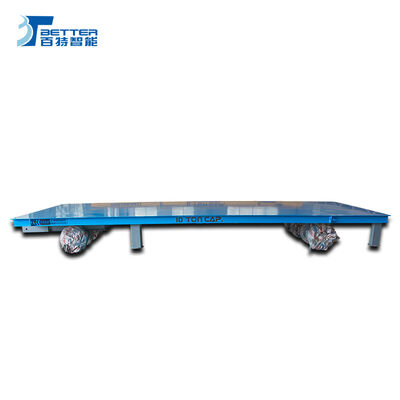

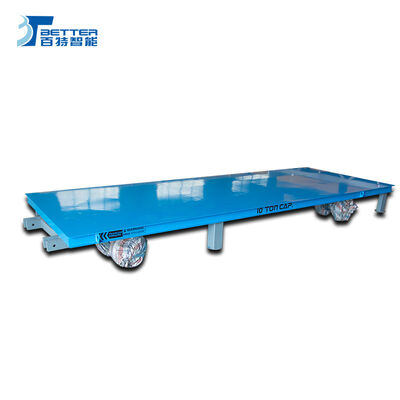

Industrial Trailer
- Load capacity: 1 - 1500 tons
- Traction method: Traction by transfer vehicle or forklift
- Wheel configuration: Heavy-duty polyurethane wheels / Cast steel wheels
- Steering mode: Automatic follow-up steering or independent steering
Working Principle
The Electric Railway Carriage receives power from the battery installed inside the vehicle. Current is supplied to the pulling motor through the electric control system, enabling the cart to start, stop, move forward, move backward, turn around, and change speed. The start-up DC motors provide smooth operation with high torque and low voltage, minimizing impact force on the reducer.
Battery Specifications
- Battery capacity depends on cart load capacity - can run 4 hours at full load for non-stop operation
- Typical working time exceeds 4 hours due to loading/unloading cycles and intermittent stops
- Charging requires 6-8 hours; from 30% power to full charge takes approximately 4 hours
- Easy replacement using forklift or trolley - replacement process takes about 5 minutes
- Battery service life: 3-4 years with 1200-1500 charge cycles under normal use
Technical Parameters
| Model | BP-2t | BP-5t | BP-10t | BP-16t | BP-20t | BP-25t | BP-30t | BP-40t | BP-50t | BP-63t | BP-80t | BP-100t | BP-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size H (mm) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running Distance (m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Customization Options
PERFECT specializes in designing and manufacturing Electric Railway Carriages with extensive customization capabilities:
- Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart
- Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter
- Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer
- Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
- Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle
Packaging and Shipping
- For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container
- For equipment with length between 5.9m and 12m: Transported by 40ft container
- Multiple units (2-3 sets) can be transported by full container
- Single units can be transported by LCL (Less than Container Load)
- Equipment exceeding standard dimensions requires flat rack containers (20ft or 40ft)
- Oversized equipment beyond container dimensions shipped as bulk cargo
