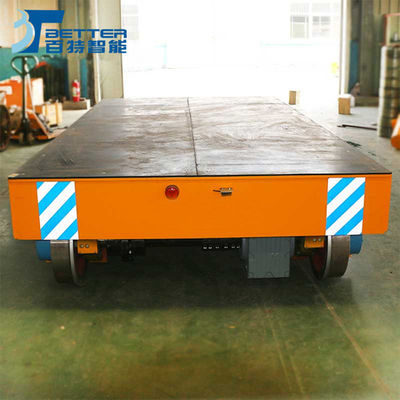

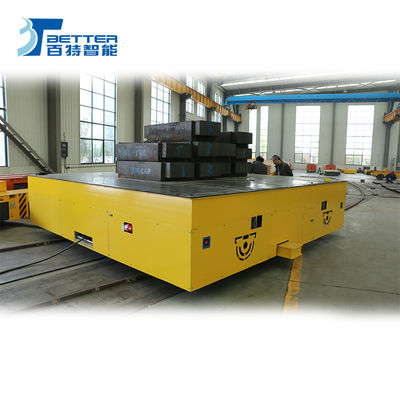

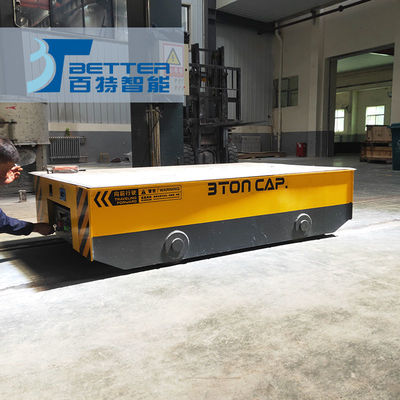

Battery-Powered Automated Guided Vehicle for Heavy Duty Material Transportation with Anti-Explosion Function
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Operating Speed | 20m/min |
| Stop Accuracy | ±10mm | Climbing Ability | ≦ 3% |
| Highlight | Battery-Powered Automated Guided Vehicle,Heavy Duty AGV Transfer Cart,Anti-Explosion Die Transport Vehicle |
||
Product Description
Construction Site Trackless Transfer AGV Automatic Guided Vehicle
Product Introduction

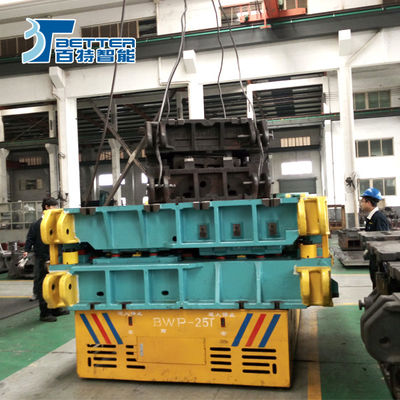

BETTER Material Handling offers a comprehensive range of Die Transport Vehicles specifically engineered for the unique requirements of stamping and molding operations. Our product line includes Die Transport Equipment, Die Carts, Die Transfer Trolleys, and Die Trailer Systems.
These vehicles operate on either railways or cement floors, with selection based on transportation routes and client project specifications. Rail transport carts are ideal for fixed routes without rotation requirements, while trackless transfer trolleys on cement floors provide 360° directional turning capability.
Applications
BETTER Die Transport Vehicles facilitate ground-level material movement across diverse industrial applications including warehouses, factory operations (internal and external), bay-to-bay transfers, airports, seaports, manufacturing workshops, production lines, and more.
Technical Specifications
| Model | AGV-5T | AGV-20T | AGV-30T | AGV-40T |
|---|---|---|---|---|
| Carrier type | Backpack | Backpack | Backpack | Backpack |
| Appearance dimensions(mm) | 3200L×2000W×800H | 4000L×2000W×800H | 3500L×2200W×800H | 5200L×2000W×800H |
| Load (customizable) | 5,000KG | 20,000KG | 30,000KG | 40,000KG |
| Navigation method | Magnetic stripe navigation | Magnetic stripe navigation | Magnetic navigation | Magnetic stripe navigation |
| Driving mode | Wheel drive | Wheel drive | Steering wheel drive | Wheel drive |
| Communication method | Industrial WIFI | |||
| Walking direction | Forward/Backward/Up/down | Forward/Backward/Up/down | Forward/Backward/Straight arc/Turn left or right | Forward/Backward/Up/down |
| Operating speed | 20m/min | |||
| Stop accuracy | ±10mm | |||
| Navigation accuracy | ±10mm | |||
| Working mode | 12 hours | 8 hours | 24 hours | 12 hours |
| Climbing ability | ≤ 3% | |||
| Special function | Lifting and lowering | Remote call | ≥4200mm (Magnetic strip laying radius) | Fixed mold |
| Power supply mode | Battery-powered | Battery-powered | Automatic/manual charging/battery replacement | Battery-powered |
| Safety sensing range | Adjustable within 3 meters, emergency braking distance less than 20mm | |||
| Alarm form | Dual alarm: voice playback and warning light indication | |||
| Safety protection | Front/rear area scanning obstacle detection sensors + emergency stop button | |||
CNC Cutting
Steel plates are transported from raw material warehouse to CNC cutting workshop for precision cutting. Post-cutting operations include chip removal and layout preparation.
Preliminary Assembling
Cut steel plates are assembled according to design specifications and technical drawings.
Welding
Automatic welding machines join steel plate components following preliminary assembly.
Post Weld Treatment
Welded sections undergo quality testing, polishing, deburring, and stress relief treatments to eliminate welding stress.
Spray Primer
Processed structural components are transported to painting booth for zinc-rich epoxy anti-rust primer application in two layers.
Assembling
Primer-coated structural parts are assembled with wheels, motors, gear boxes, and other components.
Paint Finish
Assembled carts undergo primer integrity inspection before final finish painting.
Debugging
Finished carts undergo electrical control system debugging, followed by no-load testing, load testing, and final inspection before storage.
- For vehicles under 6m length and 2.2m width: Transport via 20ft container
- For vehicles between 5.9m-12m length: Transport via 40ft container
- Multiple units (2-3 sets): Full container transport
- Single unit: LCL (Less than Container Load) transport
- Width exceeding 2.2m: Requires flat rack transport (20ft or 40ft)
- Oversized equipment: Bulk cargo transport based on dimensions and quantity
Four primary transfer cart types designed for specific applications:
Towed Type Carts
Capacity: Up to 60 tons. Features caster or crane wheels for manual movement on smooth to semi-smooth floors. Can be towed behind lift trucks or powered carts. Economical alternative to powered carts. Suitable for space-constrained work areas.
On-Rail Type Carts
Capacity: Up to 100 tons. Mounted on steel rails for fixed-path shuttling. Available in AC powered or DC battery powered configurations. Ideal for moving materials like steel or liquid tanks between locations.
Steerable Type Carts
Capacity: Up to 45 tons. Features two fixed and two swivel casters. DC battery powered (AC optional). Designed for smooth to semi-smooth level floors. Customizable for specific application requirements.
Henan BETTER Handling Equipment Co., Ltd. specializes in designing and manufacturing comprehensive transport systems to address diverse material handling requirements. Our product portfolio includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolleys, Scissor Lift Tables, Turntables, and numerous specialty handling solutions.
