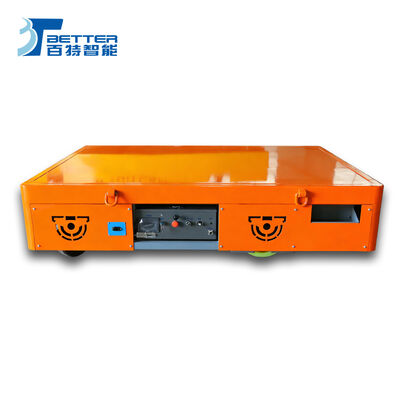

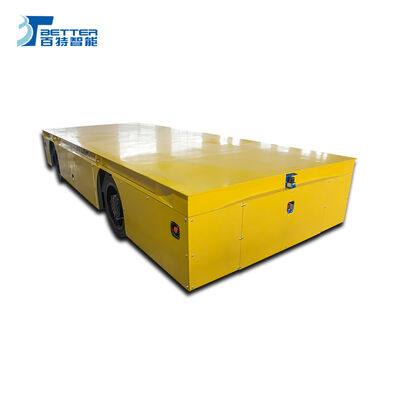

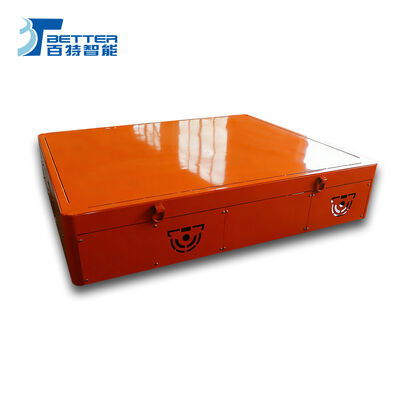

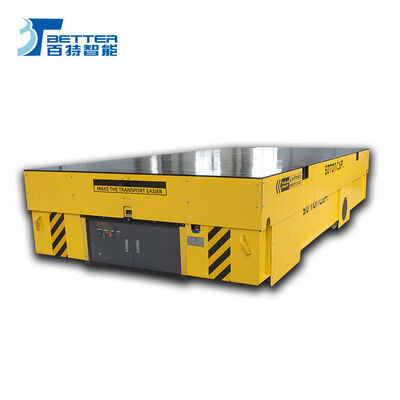

Heavy-Duty 1-300ton Load Capacity Anti-Explosion Heat-Resistant Trackless Transfer Cart for Industrial Use
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000*2000*500 |
| Wheel Diameter | 270-600mm | Running Speed | 0-25m/min |
| Battery Voltage | 48-72V | ||
| Highlight | 1-300ton Load Capacity Trackless Transfer Cart,Anti-Explosion Battery-Power Transfer Cart,Heat-Resistant Transfer Trolley |
||
Product Description
Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations
Product Overview
The Heavy-Duty Trackless Transfer Cart is engineered to streamline die handling between storage and press operations in manufacturing facilities. Built with a reinforced chassis and high-precision positioning, it ensures the safe and stable transport of heavy, high-value dies—even in congested or uneven factory environments.
Its trackless design allows flexible routing around machinery and through narrow aisles, eliminating the need for fixed infrastructure while adapting to dynamic production layouts. Equipped with customizable clamping interfaces and intelligent control systems, the cart enables seamless loading, transfer, and alignment of dies with presses.
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hours) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Key Applications
- Realize the safe and efficient flow of heavy-duty molds between the warehouse and the press
- Ensure the integrity of high-value precision molds during transportation
- Precisely connect with the press worktable and optimize the mold changing process
- Strengthen the standardization and space utilization of mold storage management
Customization Options
Mechanical Options Include:
- Deck Railings
- Wood Decking Material
- Screw-Jack Lift Deck
- Paint Color (customer specified)
- Rail Guides
- Running on Floor or Rail
- End Stops
- Urethane Wheels (not available on guided carts)
- Live Axle
We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
For length less than 6m and width less than 2.2m, the cart will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m and the width is beyond 2.2m, it needs to be transported by flat rack (20 or 40 ft). If the equipment is beyond above dimensions, bulk cargo shipping will be considered.
About Our Company
Our factory is located in Xinxiang City, Henan province. Our company has 15 years of industry experience, passed ISO9001 Quality management system and got the CE, SASO, SGS certificate.
We can produce all kinds of transfer cart from 1-1300 tons, our main products including BDG series Transfer cart, BJT cable drum series Transfer cart, BHX safety sliding line series Transfer cart, BXC battery series Transfer cart, BTL towed cable series Transfer cart, BP non-power series Transfer cart, BQY train towed series Transfer cart, BWP trackless series Transfer cart and special Transfer cart, such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
