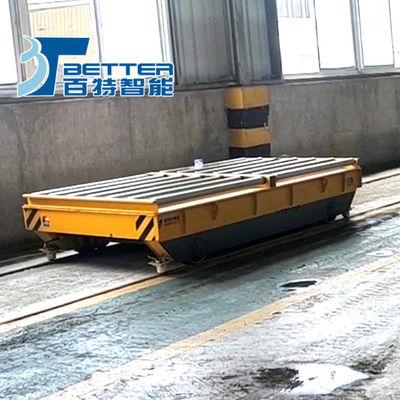

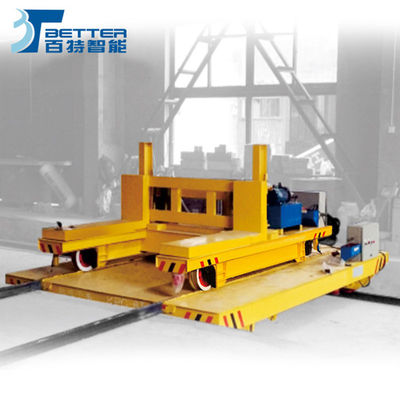

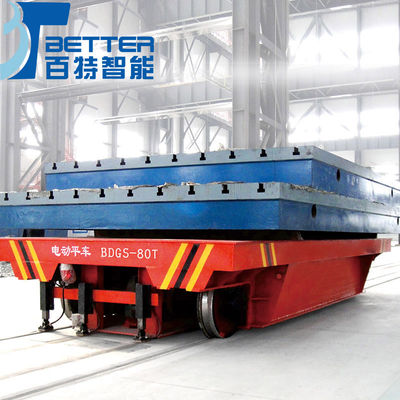

Industrial Rail Transfer Cart With Electric Drive System And Robust Steel Frame For Heavy Duty Material Transportation
Product Details
| Product Name | Rail Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000*2000*500 |
| Operating Speed | 0-30 Meters Per Minute | Motor Power | 2.2 To 30 KW |
| Wheel Diameter | 270-600 Mm |
Product Description
Industrial Rail Transfer Cart
Industrial rail transfer cart with electric drive system and robust steel frame engineered for repeated transportation of heavy materials in demanding industrial environments.
Product Overview
This industrial track electric transfer vehicle is designed for industries such as heavy manufacturing, steel metallurgy, mechanical processing, and building material production. It features an electric drive system and enhanced steel frame structure, specifically tailored to meet the requirements of high-frequency, large-tonnage, and long-term continuous operations.
Core Configuration
- Load capacity: 10 tons, 20 tons, 30 tons, 50 tons, 80 tons, 100 tons, 150 tons, 200 tons (customizable as needed)
- Vehicle body structure: High-strength box-shaped steel frame, fully welded structure, treated with stress-relieving annealing process
- Drive system: AC variable frequency / DC motor drive, power ranging from 2.2 to 30 kW (multiple motor configuration)
- Power supply method: Safe sliding cable / Cable reel / Low-voltage track (optional)
- Control method: Wireless remote control + Vehicle-mounted line control + Driving operation (optional)
- Operating speed: 0 - 30 meters per minute, adjustable continuously
Safety Features
- Emergency stop button (with both vehicle body and remote control configurations)
- Sound and light alarm (operation, reverse, fault indication)
- Heavy-duty polyurethane buffers at both ends of the vehicle body + mechanical limit stop blocks
- Electromagnetic braking + manual parking brake, automatic braking in case of signal loss
Customization Options

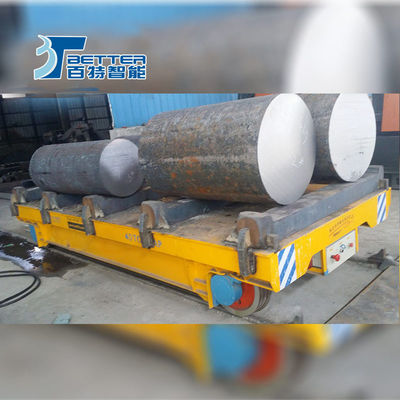

- Surface form: Flat plate (general-purpose), V-shaped saddle (steel coil/tube), Concave platform (steel ingot), T-shaped groove platform (fixed tooling), Platform with power rollers (automatic loading/unloading)
- Function expansion: Hydraulic lifting platform, platform rotation mechanism, automatic weighing system, RFID identification, remote frequency control
- Railway layout: straight line, S-shaped, C-shaped, circular track, which can be adapted to turntables and switches to achieve multi-directional transportation
- Environmental adaptability: High-temperature resistant type, explosion-proof type, corrosion-resistant type
Product Specifications
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size H (mm) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power (KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance (m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Applications
- Iron and steel metallurgy: Track transportation of steel billets, steel coils, scrap steel, and slag tanks among the steelmaking, continuous casting, and rolling workshops
- Heavy machinery: Transportation of large structural components, engines, generator stators and rotors between processes on the assembly line and test area
- Building materials/precast components: Transportation of precast beams, slabs, piles, and pipes in the curing area, storage yard, and loading platform
- Port/Railway Freight Yard: Containerized and heavy cargo are transported by rail between the quay and the storage area
- Aerospace/defense: Fixed-point transfer of missile/rocket compartments and large components in the assembly workshop
Frequently Asked Questions
What surfaces does the flat transfer trolley travel on?
The on-rail transfer cart is designed with flanged wheels and travels on rail. Most applications are on level surfaces; however, it is possible for carts to travel on inclines not greater than 4°. With steerable carts, flat tread steel wheels (hardened tread surface) come standard and are fine for most concrete smooth to semi smooth floors. For non-marking epoxy floor systems, optional urethane wheels can be ordered (up to 20 ton capacity). Carts are not designed for uneven surfaces such as gravel, rough terrain, or badly cracked concrete floors.
How can transfer carts be customized?
Please tell us:
• What load or product will be transferred onto the cart?
• What is the weight of the heaviest lift or load?
• What are the dimensions? (Length; Width; Height)
• What is the trip time and frequency? (# of Trips per, Shifts per day:)
• What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
• What is the distance to travel?
• Other relevant information or using condition.
• What load or product will be transferred onto the cart?
• What is the weight of the heaviest lift or load?
• What are the dimensions? (Length; Width; Height)
• What is the trip time and frequency? (# of Trips per, Shifts per day:)
• What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
• What is the distance to travel?
• Other relevant information or using condition.
Our Advantages
- Low noise - Causes low noise level during operation
- Maximum safety - Offers guarantee of maximum safety for operators and for the material handled
- Easy for operation - These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads
- Easy to implement into manufacturing process - Operates on standard floors; Do not require complex or permanent installation
- Suitable for all kinds of weight - The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley
Packaging & Shipping
• For length less than 6m and width less than 2.2m: Transported by 20ft container
• If length is longer than 5.9m and less than 12m: Transported by 40ft container
• If quantity is 2 sets or 3 sets: Can be transported by full container
• If quantity is 1 set: Can be transported by LCL Container
• If length is less than 12m and width beyond 2.2m: Needs to be transported by flat rack (20 or 40 ft)
• If equipment is beyond above dimensions: Consider bulk cargo shipping
• If length is longer than 5.9m and less than 12m: Transported by 40ft container
• If quantity is 2 sets or 3 sets: Can be transported by full container
• If quantity is 1 set: Can be transported by LCL Container
• If length is less than 12m and width beyond 2.2m: Needs to be transported by flat rack (20 or 40 ft)
• If equipment is beyond above dimensions: Consider bulk cargo shipping
