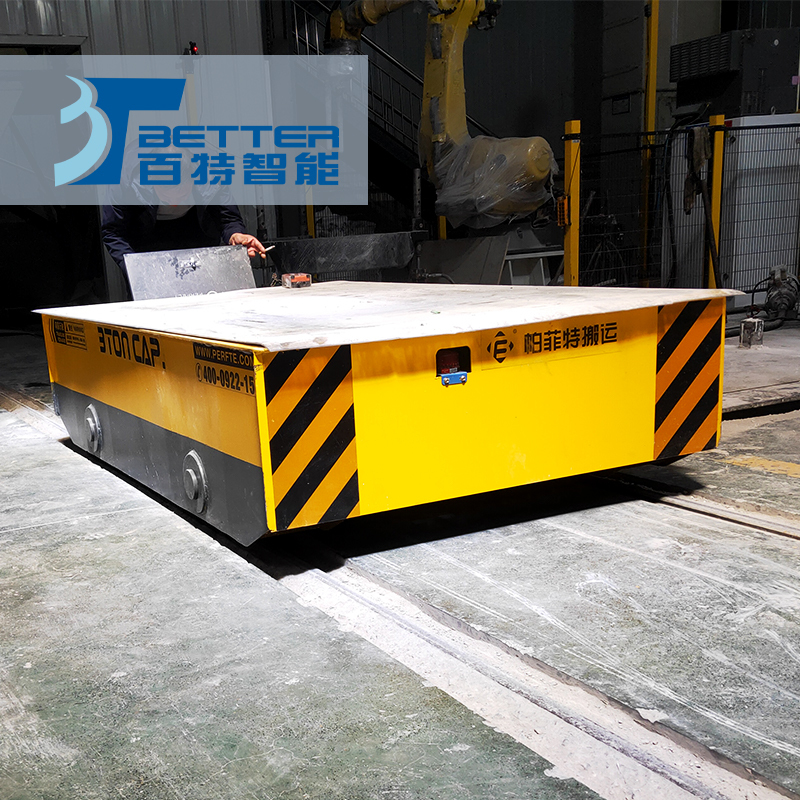

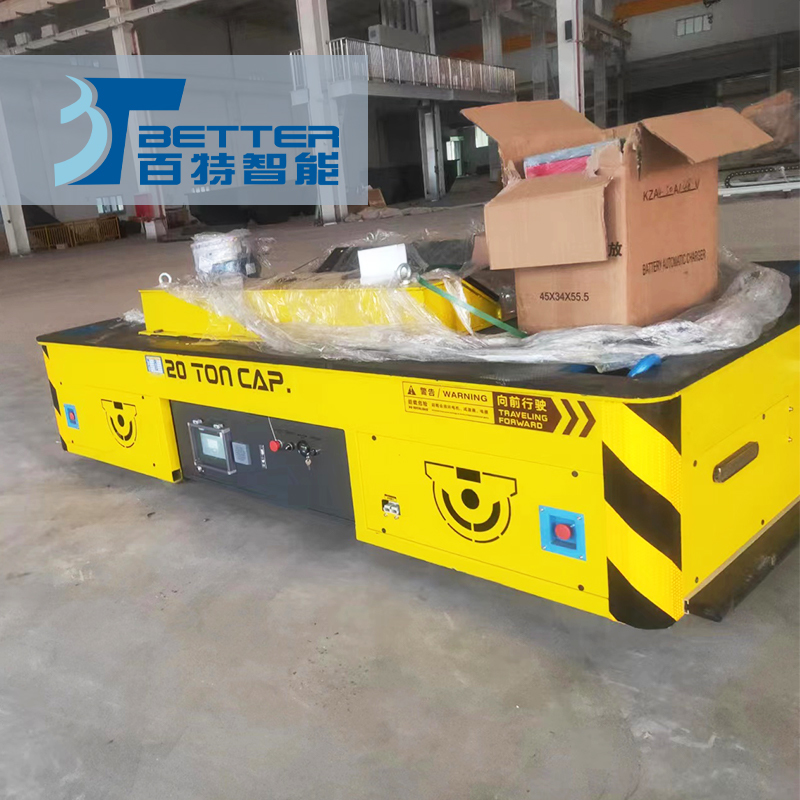

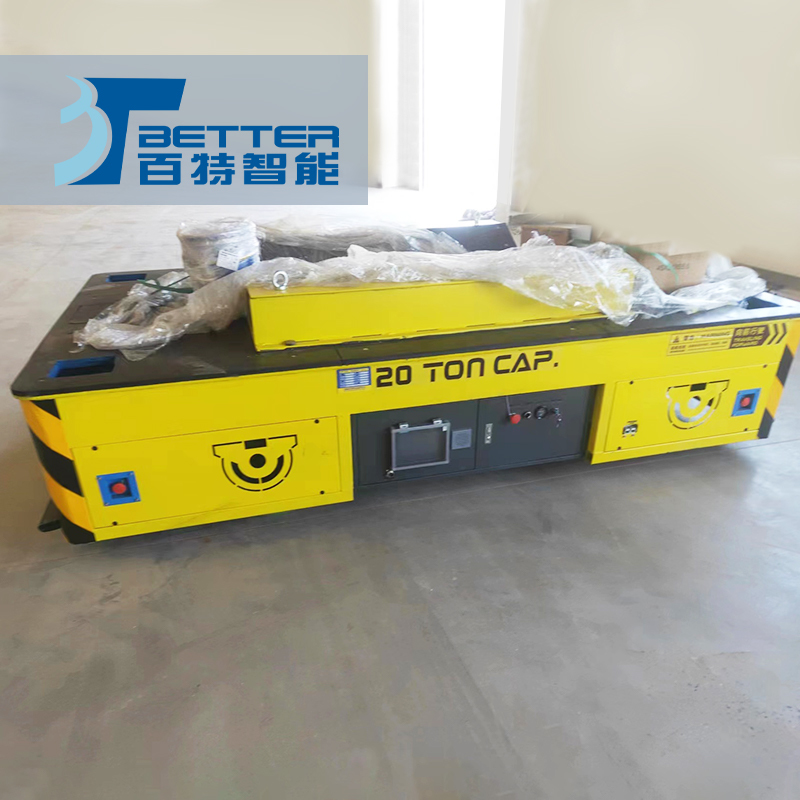

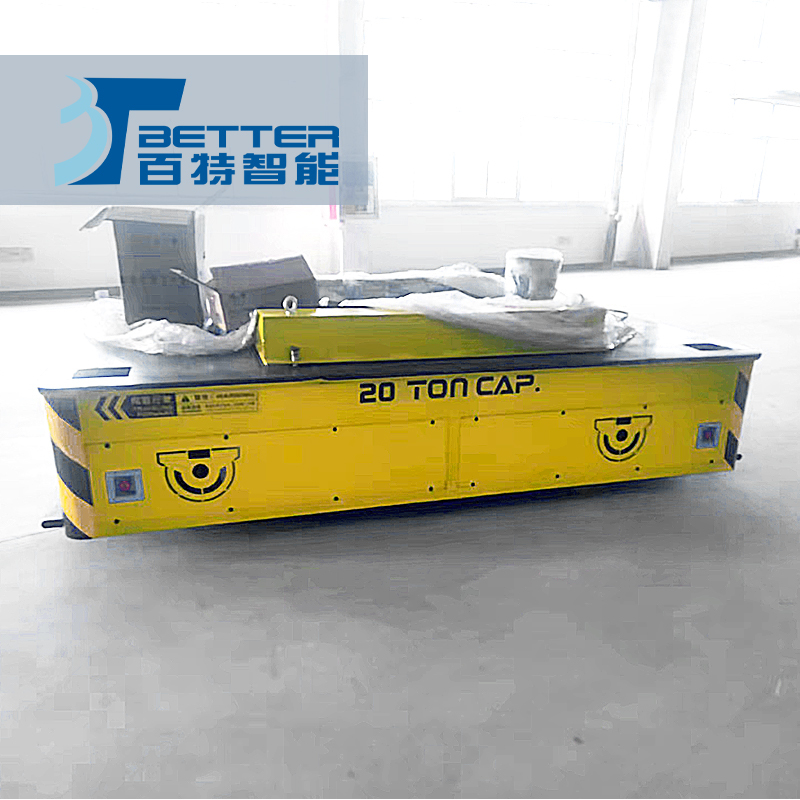

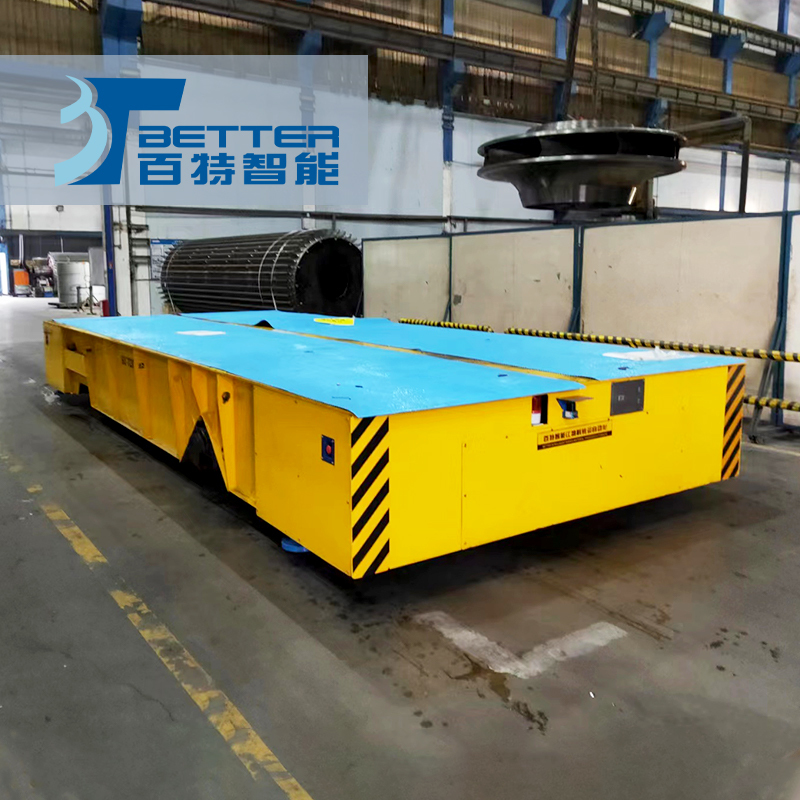

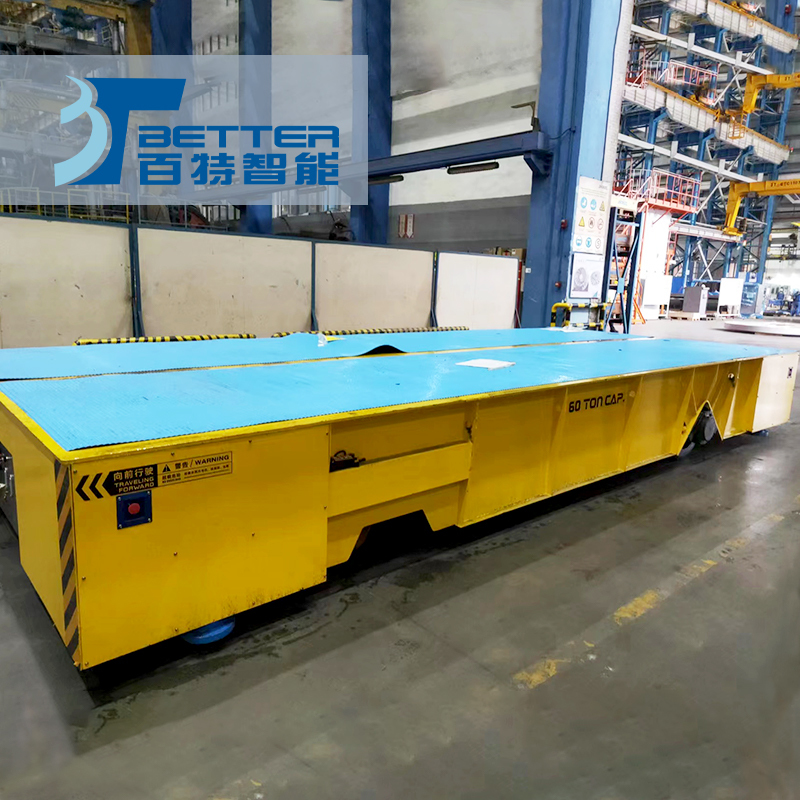

60T Capacity Battery Powered Transfer Cart Electric Material Transfer Trolley
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BWP |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 5000/Years | ||
| Highlight | 60T Battery Powered Transfer Cart,Electric Battery Powered Transfer Cart,Battery Powered material transfer trolley |
||
Product Description
60 T Capacity Electric Transfer Cart Powered by Lithium Battery Powered
Application of Electric Railway Carriage
Uses of Electric Railway Carriage:
The Electric Railway Carriage is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
The Electric Railway Carriage is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
Working Priciple of Electric Railway Carriage
The Electric Railway Carriage get the power from the battery which is installed inside the car. The current is supplied to pulling motor through electric control system, which makes the car start, stop, move forward, move backward, turn around, change speed, etc. The start-up DC motors installed in the car is smooth with high torque and low voltage, so the impact force to reducer is much weaker.
The Battery of Electric Railway Carriage
1. The battery capacity is depend on the cart load capacity. It can run 4 hours when full-load for no sport working. The cart will load and unload, and will stop times, so the working time is much longer than 4 hours.
2. The battery need 6-8 hours for charging. When it is left 30% power, it will need 4 hours to charge full.
3. The battery is very easy for the replacement. It can be taken out by a forklift or a trolley. The replacement will just need about 5 minutes.
4. The service lift of the battery is 3-4 years, you can charge 1200-1500 times with normal use.
2. The battery need 6-8 hours for charging. When it is left 30% power, it will need 4 hours to charge full.
3. The battery is very easy for the replacement. It can be taken out by a forklift or a trolley. The replacement will just need about 5 minutes.
4. The service lift of the battery is 3-4 years, you can charge 1200-1500 times with normal use.
Parameter of Electric Railway Carriage
| Model | BWP-5t | BWP-10 | BWP-15 | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of Frame | Steel plates welded, beam structure | ||||||
| Thickness of the steel plate | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 3600*2000 | 4000*2200 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||||
| Control method for turning | Control button | ||||||
| Turning structure | Mechanical | ||||||
| Motor power (KW) | 3 | 4.4 | 6 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 350-2/220-2 | 350-2/240-2 | 400-2/240-2 | 400-2/320-2 | 540-2/360 | 580-2/360-2 | 580-2/360-2 |
| Wheel material | ZG55+hydropurture | ||||||
| Running speed (m/min) | 0-20 | ||||||
| Brake principle | Electric magnetic brake | ||||||
| Ground balance | mechanical automatic adjustment | ||||||
| Operation method | With wire or no wire | ||||||
| Battery model | D-250 24pieces | D-330 24pieces | D-400 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||||
| Charger's installation | Installed on cart | Split-type | |||||
| Cart color | Yellow and warning sign | ||||||
| Charger's function | Automatic stop for obstacles | ||||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||||
| Warning equipment | Sound and light | ||||||
| Other functions | Turning light, night light and power display | ||||||
Customized of Electric Railway Carriage
better is specialized in designing and manufacturing of Electric Railway Carriage:
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Packaging and Shipping of Electric Railway Carriage
*For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
