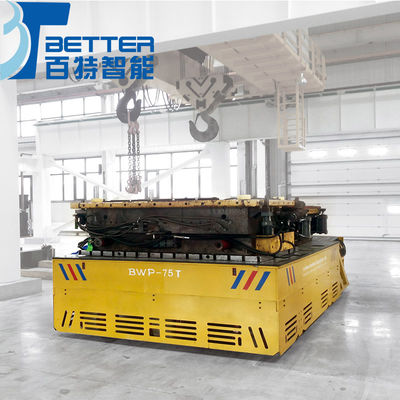

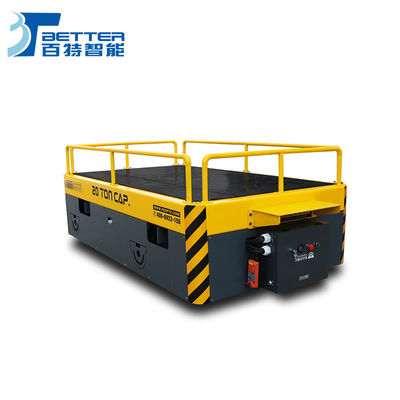

Safety Shielded Automated Guided Vehicle with Robust Drive Core Heavy Duty AGV Transfer Cart

This safety-protected Automated Guided Vehicle (AGV) is specially designed to achieve the highest reliability in harsh industrial environments. Its robust drive core ensures long-lasting and stable performance, enabling it to handle heavy-load transportation tasks and operate smoothly. It is designed as a highly reliable fully automatic transfer trolley, providing safety guarantees and continuous productivity for your most critical material flow operations.

Precise distribution between different welding stations ensures stable operation, eliminating production line shutdowns caused by transportation delays.

In large workshops, the cross-regional transfer of heavy workpieces such as excavator chassis and large hydraulic supports is automatically completed.

In the aircraft component assembly area, large wing skins, carbon fiber composite materials, and other expensive and fragile components are transferred. The smooth and reliable operation effectively protects the integrity of the material structure.

In automated vertical warehouses, traditional forklifts are replaced for high-position storage and retrieval of palletized goods as well as outbound collection. Intelligent dispatching ensures the efficiency of continuous operations and equipment safety.

1. CNC Cutting Transport the steel plate from the raw material warehouse to the CNC cutting workshop for cutting. After cutting, workers perform simple processing such as chip moving and setting out.
2. Preliminary Assembling Put the cut steel plates together according to the design drawing.
3. Welding Weld the steel plates with an automatic welding machine after preliminary assembling.
4. Post-Weld Treatment Test the welding section after welding, polish and deburr. Post-weld treatment eliminates welding stress.
5. Spray Primer Transport the processed structure part to the painting booth for spraying primer. The main component of the primer is zinc-rich epoxy anti-rust paint. The primer is applied in two layers.
6. Assembling Assemble the structure parts after spraying primer with wheels, motors, gear box, etc.
7. Paint Finish Transport the assembled cart to the painting booth, inspect the integrity of the primer, and then apply the finish coat.
8. Debugging Debug the cart after painting the finish with the electric control system. After debugging, the cart is tested without load. Following the no-load test, the cart is tested with load. After inspection, the cart is transported to the storage area.



For length less than 6 m and width less than 2.2 m, the cart will be transported by 20 ft container. If the length is longer than 5.9 m and less than 12 m, it will be transported by 40 ft container. If the quantity is 2 or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL container.

If the length is less than 12 m and the width exceeds 2.2 m, it needs to be transported by flat rack (20 or 40 ft). If the equipment exceeds the above dimensions, and quantity considerations apply, bulk cargo shipping is required.
